CAT5e Rolling Stock Ethernet Cables

Designed for rail vehicles, used in TCN/ETB/ECN and other train Ethernet networks, providing reliable data transmission for video surveillance, multimedia, PIS systems, etc. The cable has good weather resistance and safety, and is especially suitable for complex Rail transit industry.
Quantity:
  • CAT5e Rolling Stock Ethernet Cables
  • zhaolong

TECHNICAL PARAMETERS

—Temperature range: -40℃~80℃

—Characteristic impedance: 100±15Ω

—Insulation resistance: ≥5000MΩ*Km

—Reference standard: EN45545-2, TJ/CL 313, TB/T 1484.3

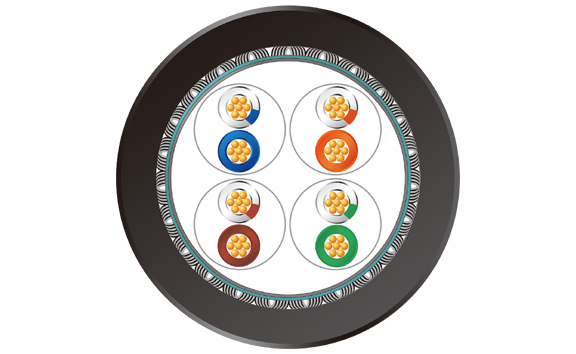

CABLE STRUCTURE

Conductor: Stranded copper conductor

Insulation: PE or foamed PE

Shielding: aluminum foil wrapped and tinned copper braid

Sheath: cross-linked LSZH

Color: black (approximately RAL 9004)


FEATURES

Superior transmission performance

Has good resistance to external electromagnetic interference

High flame resistance, meeting the requirements of IEC60332-1&IEC60332-3-25

Halogen-free, low smoke, low toxicity

Acid and alkali resistance, ozone resistance

Excellent oil resistance

The cable has good resistance to high and low temperature
