HD MPO Patch panel

Optical fiber distribution frame uses high-quality cold-rolled steel plate
Modular management and installation, the module can be pulled back and forth, compatible with different adapter panel installation
Fiber output at the front and cable management at the rear
Surface treatment of optical fiber distribution frame, using electrostatic environmental protection powder coating to ensure adhesion of 4B and above
The opening angle of the front door is greater than 90°, and the rear can be offline for easy operation
Clearly marked
The module has large design space, beautiful structure and easy operation

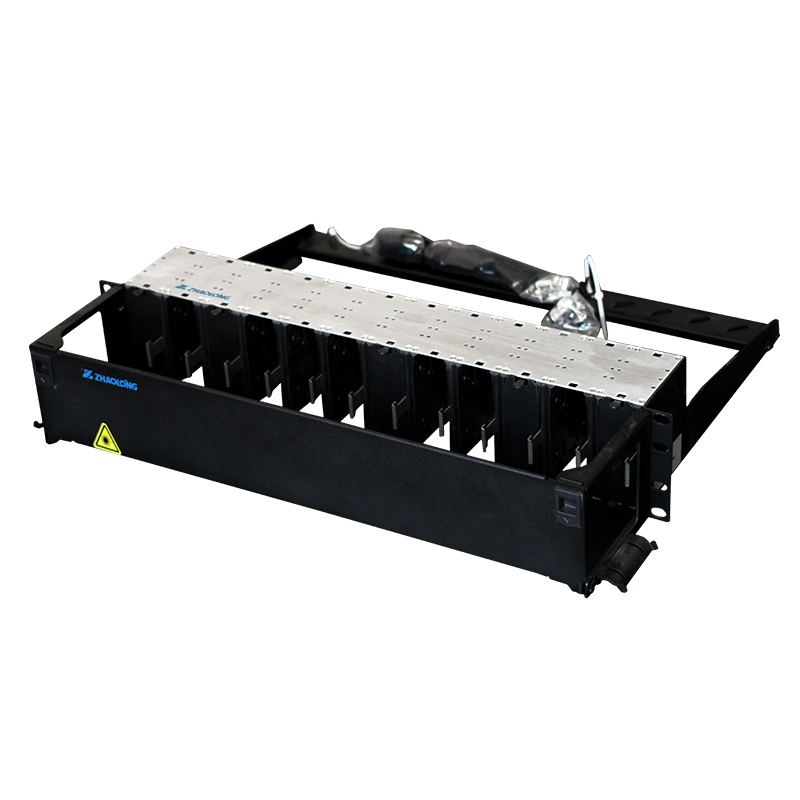

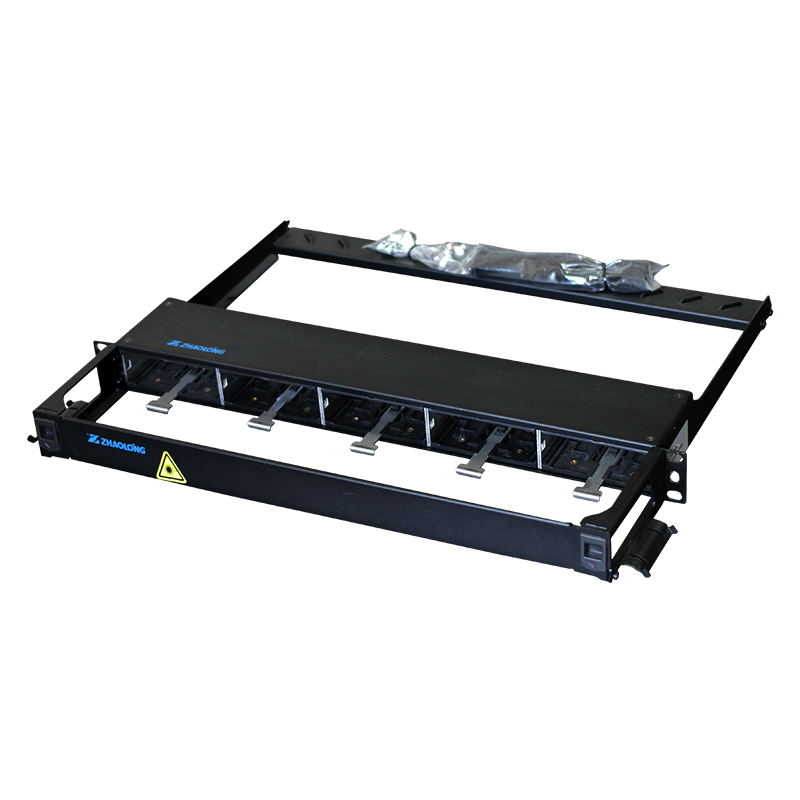

1U fiber distribution frame can install 5 12-core or 24-core modules, 2U fiber distribution frame can install 12 12-core or 24-core modules
The maximum capacity of 1U fiber distribution frame is 120 cores, and the maximum capacity of 2U fiber distribution frame is 288 cores
RoHS 2.0 compliant
Quantity:
  • MPO
  • zhaolong

REFERENCE STANDARD

ISO/IEC11801


SPECIFICATIONS

Dimensions :

(Height x Width x Depth) 1Ux482x385(mm); 2Ux482x385(mm)

Installation dimensions:

19 inch installation

Spray color :

black

Material:

Cold rolled steel plate

Use environment :

indoor


PHYSICAL PARAMETERS

Operating temperature :

-10 °C~ 60 °C

storage temperature :

-40 °C~ 68 °C

Relative humidity:

10% ~ 90%
