Introduction: Core Connectivity Backbone for Large-Scale Energy Storage Era

Driven by the Dual Carbon Goals, new energy storage has become an indispensable pillar for building a modern new power system. As solar PV plus energy storage (PV-ESS) systems grow more integrated and operate long-term in harsh outdoor environments, critical interconnection links for on-site data collection, control communication and multi-device coordination have evolved from ordinary accessories into core functional components that determine overall system operating efficiency, operational safety and full-lifecycle value.

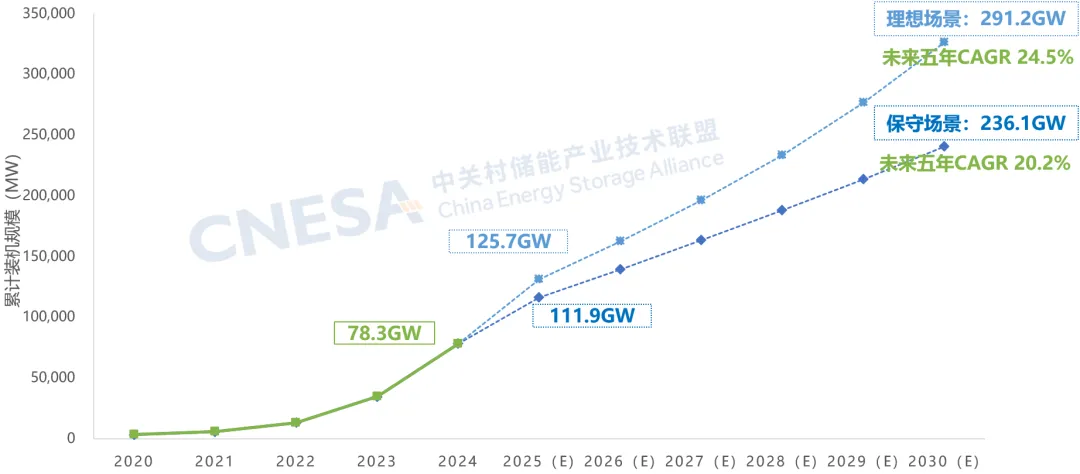

Forecast of China’s Cumulative Installed Capacity of New Energy Storage (2025-2030)

Source: Zhongguancun Energy Storage Industry Technology Alliance



Why Is System Connectivity Indispensable?

Against the trend of PV-storage integration and source-grid interactive operation, physical interconnections stand out as one of the main vulnerable points of the whole system. The core challenge lies not only in massive connection points, but also in the demand for long-term stable and safe operation of every joint under complex working conditions.



Four major industry pain points are summarized as follows:

1. High Integration & Severe Signal Interference

Inverters, PCS and EMS feature highly compact internal layout. High-power circuits are arranged closely alongside low-voltage control and communication lines, bringing prominent Electromagnetic Interference (EMI) risks. It easily triggers signal distortion, data packet loss and even false protection actions, severely undermining system stability and availability.



2. Collaborative Communication Restrictions

PV-ESS systems require real-time data synchronization among PV modules, battery clusters and EMS platforms. Cables with poor anti-interference performance tend to form isolated communication zones under complex electromagnetic environments, resulting in command latency, data desynchronization, and lower accuracy of power regulation and grid dispatch response.



3. Long-term Environmental Corrosion

Outdoor facilities suffer from UV radiation, extreme temperatures, salt spray and wind erosion, while cabinet interiors face high temperature, mechanical vibration and condensation. Ordinary connectors are prone to aging and corrosion, which raises contact resistance, weakens insulation performance, and further causes local overheating, communication faults and frequent maintenance issues.



4. Difficulties in Large-scale Deployment & Daily O&M

Hundreds-of-megawatt power plants contain enormous connection nodes, making it hard to unify on-site manual construction quality. During the over 20-year operation cycle, fault detection and cable replacement bring extremely high time and cost expenses.

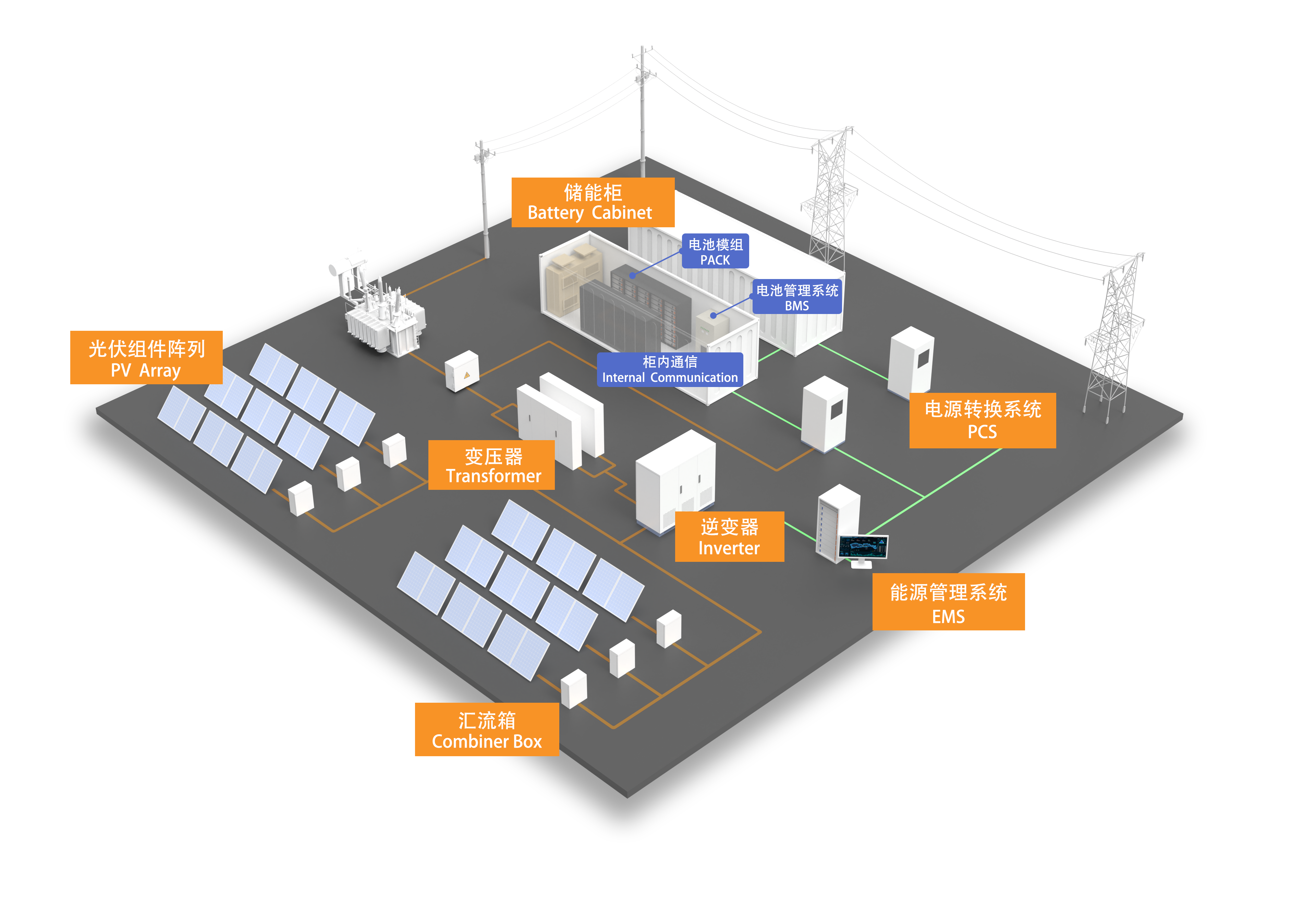

PV & Energy Storage Cabinet Application Scenarios



How to Deploy Professional System-level Connectivity Solutions?

Traditional single cable supply can no longer meet comprehensive on-site demands. The core value of Zhaolong Interconnect solutions is not merely cable supply, but building a highly reliable, efficient and easy-to-maintain intelligent connection nervous system for full PV-ESS projects.



We stick to application-oriented design concepts, and launch differentiated customized solutions according to actual electrical environments, mechanical stress and communication demands at different installation positions, covering six core application scenarios.



Scenario 1: PV Tracker System Connection — Actuator & Control Signal Transmission

Besides module string and combiner wiring at the front end of PV arrays, stable connections are required between tracking brackets, drive motors, executive actuators and control units. These outdoor lines need long-term resistance against temperature fluctuation, humidity, sand wind and mechanical swing.



Zhaolong provides customized motor connection assemblies, control signal cables and matched termination parts, fully meeting weather resistance, stable connection and standardized installation requirements, and ensuring accurate remote control and real-time status feedback of front-end PV equipment.



Scenario 2: Core Control Unit — High-density Anti-interference Wiring Inside Inverters

Inverter interiors feature compact layout with dense signal lines, control circuits and auxiliary power links, exposed to high temperature, high voltage and strong electromagnetic interference.



We adopt high-temperature resistant and high-shielding data & control cables to restrain EMI effectively. Meanwhile, we popularize integrated modular connection design and replace scattered wiring with finished prefabricated harnesses. This design simplifies internal wiring work, lowers assembly error rate, unifies construction standards and facilitates later troubleshooting, forming a solid physical connection base for internal control and signal transmission.



Scenario 3: Internal Energy Storage Cabinet Wiring — BMS Sampling & Communication Links

Internal wiring inside battery PACK clusters is the core data support for accurate battery status monitoring and intelligent management execution.



Aiming at narrow installation space, dense wiring and diversified signal types inside energy storage cabinets, Zhaolong builds integrated connection networks via combined power-data composite cables, CAT 5_e industrial Ethernet cables and CANBUS / RS-485 fieldbus cables. The integrated layout solves internal wiring difficulties, realizes high-density multi-signal stable transmission in limited space, and guarantees reliable data foundation for precise sensing, real-time control and efficient management of Battery Management System (BMS).

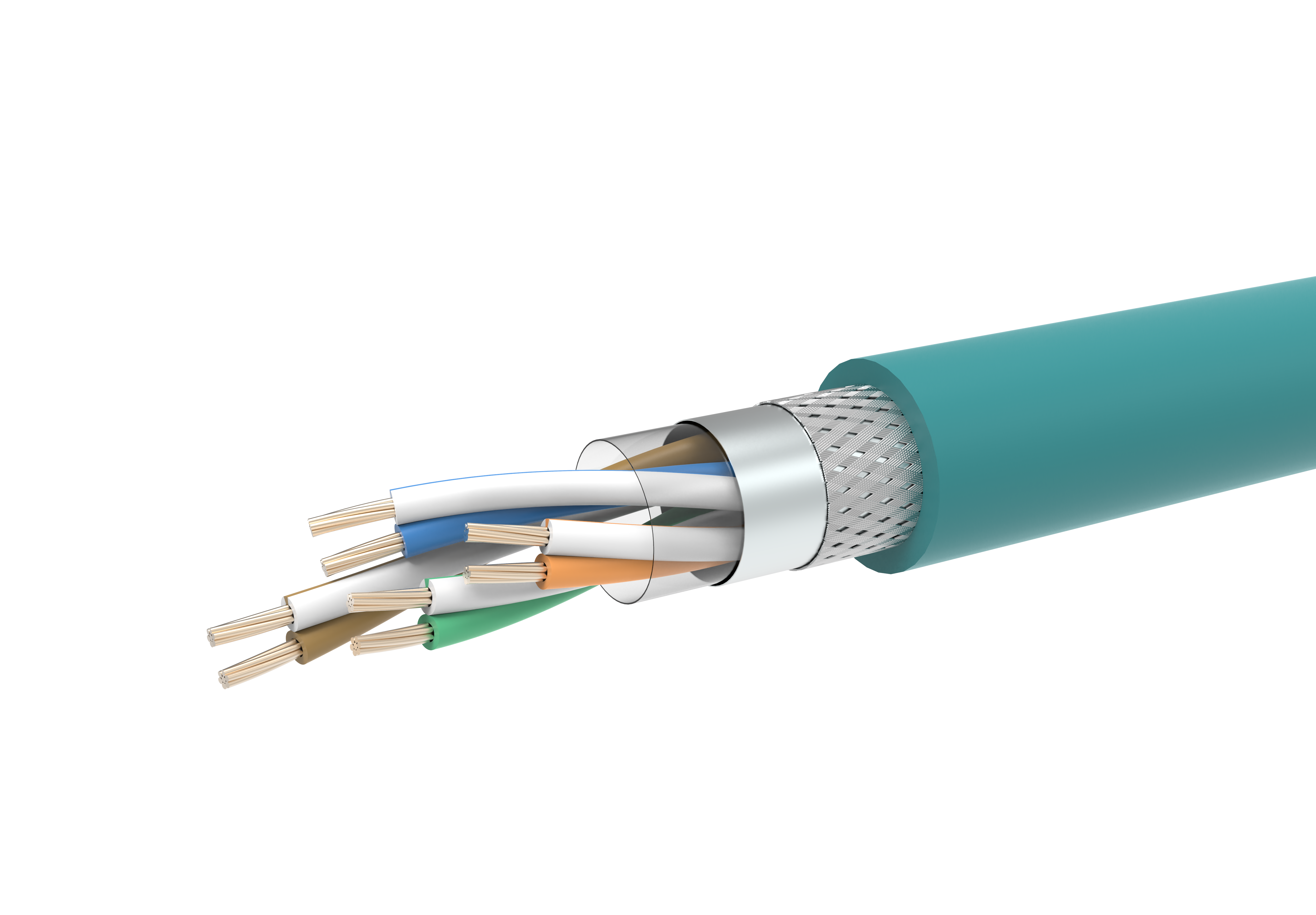

Zhaolong CAT 5_e Industrial Ethernet Cable



Scenario 4: Inter-cabinet System Linkage — Cross-station Stable Communication Channels

Energy storage cabinets are core units of energy storage power stations. Cross-cabinet wiring often passes through outdoor zones, cable trenches and other areas with mechanical extrusion, rodent damage and strong electromagnetic interference.



Targeting such harsh mixed working conditions, Zhaolong establishes layered classified physical connection systems with CAT 5_e / CAT 6_A industrial Ethernet cables, armored outdoor cables and fieldbus cables. It delivers high-bandwidth stable data transmission channels for core device interaction, provides strong mechanical and environmental protection for outdoor wiring, and builds efficient underlying data acquisition & control networks to realize seamless linkage among battery cabinets and intelligent unified management of the whole energy storage station.

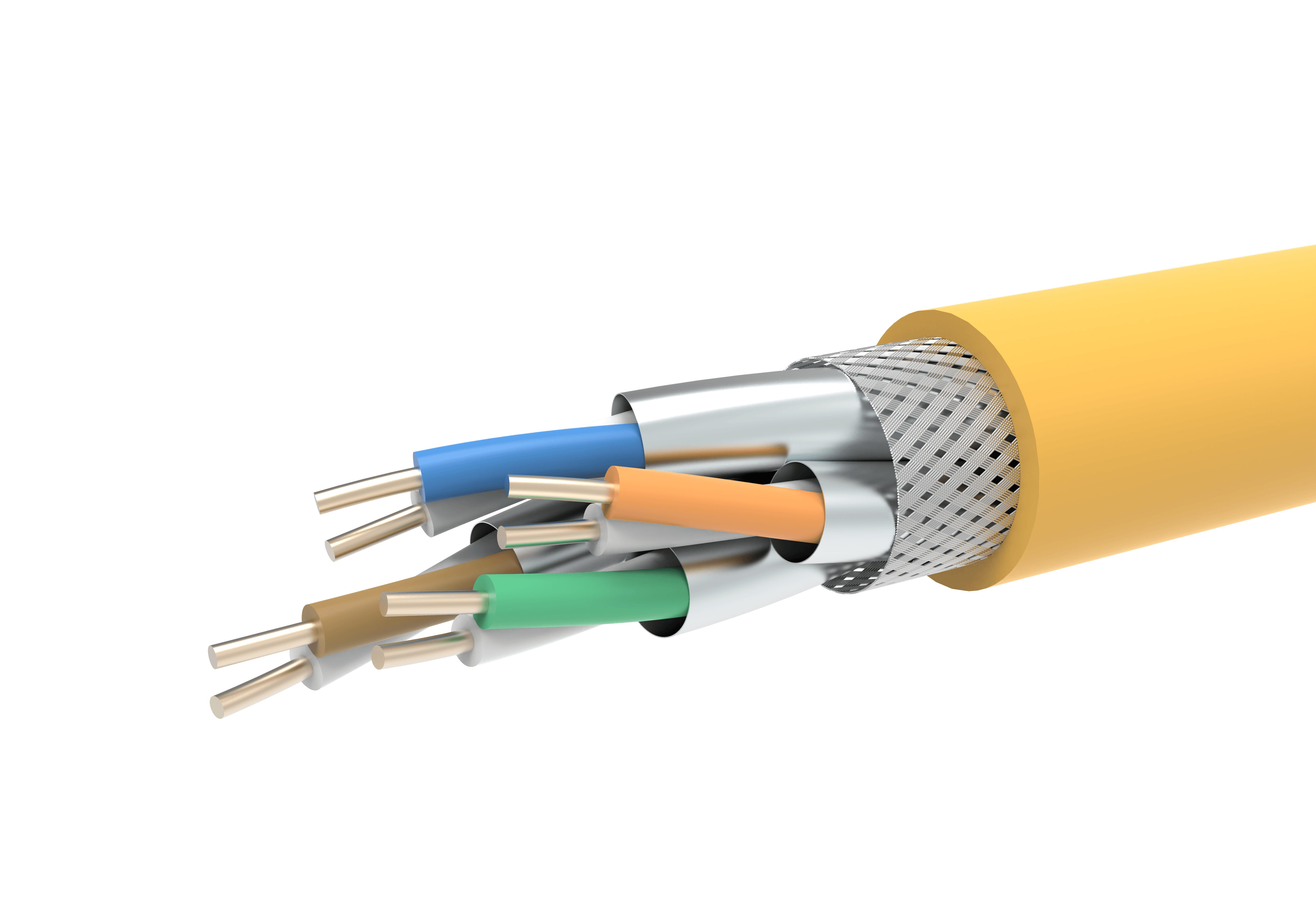

Zhaolong CAT 6_A Industrial Ethernet Cable



Scenario 5: Compact Integrated Connection — Universal Interface Solution for Residential & Small-scale PV-ESS

Household energy storage and mini integrated PV-storage products are designed with ultra-compact structure, requiring integrated internal communication, control ports and external interconnection functions.



In response to demands for compact structure, fast assembly and multi-type interface matching, Zhaolong launches plug-and-play integrated connection schemes with customized CAT 5_e industrial Ethernet components and matched termination accessories. Prefabricated shielded communication assemblies and diversified wiring terminals greatly improve internal communication stability, interface integration level and overall assembly efficiency, satisfying external wiring, internal lead-out and wall-through installation needs. Modular design optimizes on-site arrangement and simplifies later maintenance, delivering reliable integrated interface support for small and household PV-ESS equipment.



Scenario 6: System Collaborative Control Hub — Overall Communication Neural Network for PV-ESS

Stable operation of full-set PV-storage systems relies on uninterrupted real-time data exchange and joint scheduling among inverters, PCS, battery energy storage systems and Energy Management System (EMS). This multi-node hierarchical communication network runs stably all year round across outdoor and industrial environments.



We match industrial Ethernet cables, fieldbus cables and outdoor protective cables flexibly according to actual bandwidth demand, transmission distance, anti-interference level and laying environment, greatly improving data transmission stability between field terminal devices and upper management platforms, and offering solid physical connection guarantee for overall coordinated scheduling of PV-ESS projects.

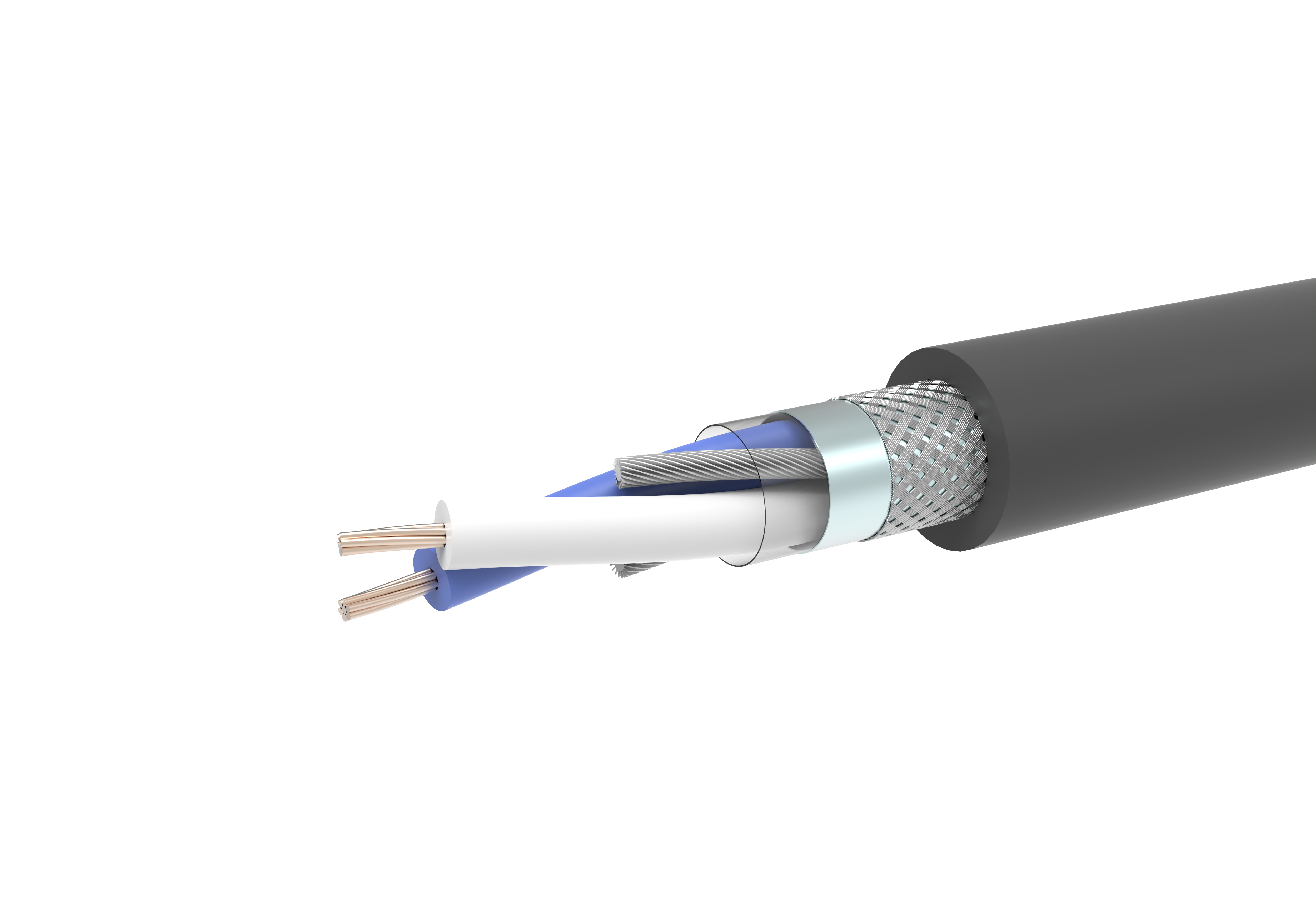

Zhaolong RS-485 Bus Cables & CANBUS Bus Cables





Build Intelligent PV-ESS Future with Reliable Connectivity Solutions

As a full member of China Communications Standards Association and a participating drafting institution of national data cable standards, Zhaolong Interconnect has focused on R&D, production and sales of industrial data cables and professional connection accessories since its establishment in 1993.



With accumulated core technologies, our industrial Ethernet wiring products and systematic connection solutions have been widely applied in core links of PV and energy storage industries, including battery cluster internal communication and overall station control network, delivering outstanding stable performance against complex on-site working conditions.



As PV-ESS industries move toward higher reliability and intelligent upgrading, professional systematic connectivity solutions have become essential supporting facilities. With in-depth expertise in power electronics and communication engineering, Zhaolong Interconnect strives to act as a professional designer of stable system connection foundations, and delivers comprehensive physical layer to communication layer reliable assurances to secure stable power station operation and long-term asset value retention within the standard 25-year service lifespan.





Next Issue Preview

This article analyzes the core importance of high-standard connectivity and systematic construction ideas. In the next chapter, we will release practical PV & Energy Storage Core Connection Component Selection Guide, sort out cable and connector selection rules for different application scenarios, and display complete Zhaolong supporting product portfolio. Please stay tuned.



If you need targeted preliminary selection suggestions for specific engineering projects, feel free to contact our professional team via official contact information.
