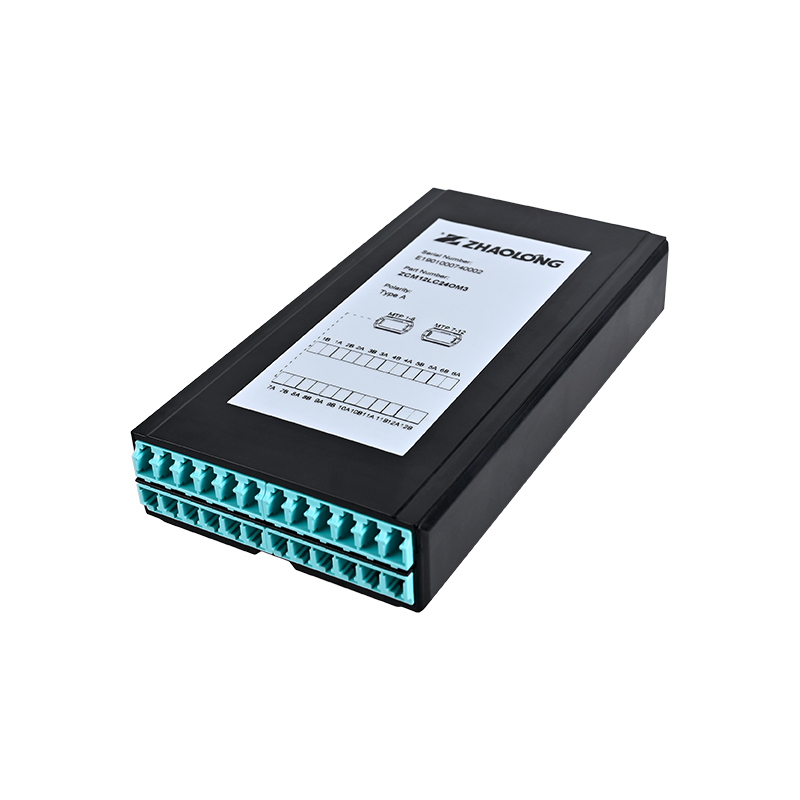

HD MPO Cassettes

Modular design, beautiful appearance
Small size, suitable for 1U, 2U fiber distribution frame combination
Can be pulled back and forth, easy to operate
Fiber Polarity Management A, B, C optional, clearly marked
RoHS 2.0 compliant
Availability:
Quantity:
  • MPO
  • zhaolong

REFERENCE STANDARD

ISO/IEC11801


SPECIFICATIONS

Dimensions :

(Height x Width x Depth) 27x83x150(mm)

Installation dimensions:

1U-120 core, 2U-288 core chassis

Spray color :

black

Material:

ABS

Use environment :

indoor


INSERTION LOSS

Standard loss :

≤ 0.70 dB

Low loss :

≤ 0.50 dB

Ultra low loss :

≤ 0.35 dB


PHYSICAL PARAMETERS

Operating temperature :

-10 °C~ 60 °C

storage temperature :

-40 °C~ 68 °C

Relative humidity:

10% ~ 90%
