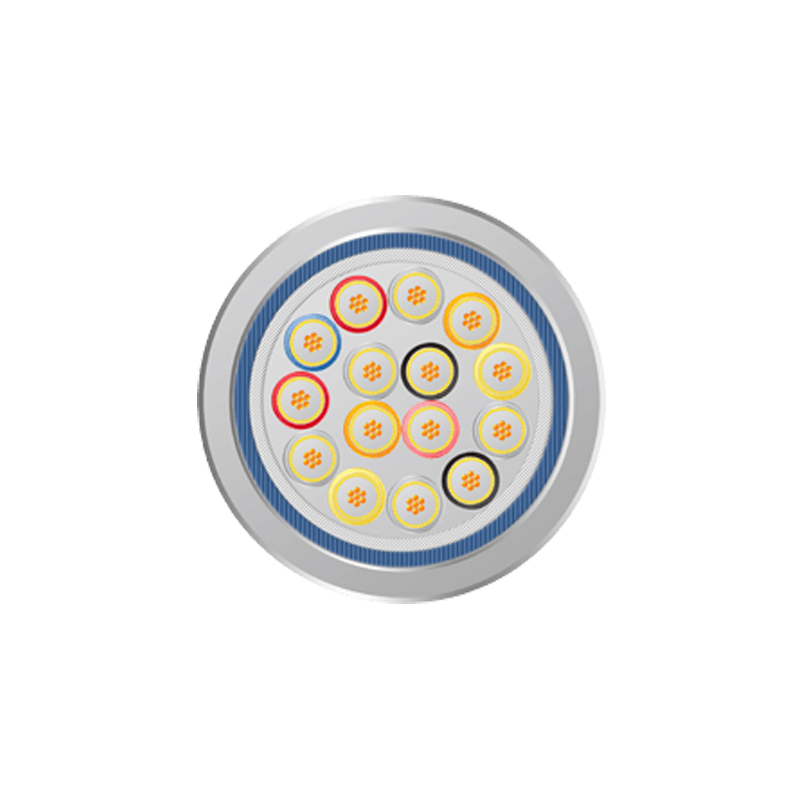

14-Core Micro Coaxial

Features

Theproduct,withexcellentextensivebendingandtwisting,anti-EMIandperfecthighspeedsignaltransmission,canbeappliedtosurveillance,aviation,intelligentrobotandmilitaryfields.Meanwhile,theproductcanalsobewidelyusedindifferentenvironments,evenintheterribleenvironment,withsteadysignaltransmissionrelyingonitsgoodperformanceofhightemperatureresistance,flameresistance,anti-erosion,workingtemperaturebetween-55℃and250°C.
Availability:
Quantity:
  • 14-Core Micro Coaxial

  • zhaolong

GENERAL PRODUCT CHARACTERISTICS

Rated temperature/voltage:

80℃/30V

Reference standard:

UL758 conductor adopts stranded tin-plated copper and silver-plated tin-copper alloy

Insulation adopts PFA etc.

The shield is wrapped with silver-plated copper or tin-plated tin-copper alloy

Copper foil and color layer PET bag skin

Materials comply with RoHS standards


ELECTRICAL PARAMETERS

Rated temperature:

-30℃~50℃

Rated voltage:

30V

Center conductor impedance (20℃):

MAX.7500OHM/km

Insulation resistance (20℃):

Min.1000M·OHM-km

Dielectric strength:

WithstandA.C.500VFOR1Min

Characteristic impedance (TDR):

50±5OHM
