In modern smart buildings, IoT devices—from ubiquitous high-definition cameras and densely deployed wireless access points to various environmental sensors and information display screens—are proliferating at an unprecedented rate. However, beneath this vision of intelligence, the underlying cabling system that carries all data and power transmission often faces severe challenges, becoming a major bottleneck constraining the efficiency and long-term development of building intelligence.

Farewell to Clutter and Bottlenecks: Building a Future-Proof Cabling System Requires First Solving These Five Major Challenges

Currently, the cabling infrastructure for smart buildings commonly faces the following core challenges:

- "Cable Jungle" and Space Crisis: The surge in terminal devices leads to densely packed cables in weak-current cable trays and closets, not only occupying valuable space and affecting heat dissipation but also making future equipment expansion and line maintenance exceptionally difficult.

- Bandwidth Bottleneck and Upgrade Pain: In scenarios involving high-density wireless access, ultra-high-definition video, and multi-terminal concurrency, traditional Gigabit links are gradually approaching performance limits. Future network upgrades often entail high renovation costs and inevitable business interruption.

- Complex Power Supply and Reliability Concerns: Each IoT terminal requires a separate power cable, significantly increasing cabling complexity, material and labor costs, and introducing more potential failure points, complicating centralized management and energy savings.

- Signal Interference and Stability Challenges: The complex electromagnetic environment within buildings can easily interfere with data signals, potentially causing command delays or malfunctions in critical systems (e.g., security, automation), affecting overall operational stability.

- High Operation and Maintenance (O&M) Costs: Facing hundreds or thousands of connection points makes fault localization difficult, and daily troubleshooting and maintenance workloads are substantial, leading to high lifecycle O&M costs.

To systematically address these pain points, the key is to select an infrastructure that simultaneously meets three requirements: high performance, high simplification, and future-proofing. The 10G PoE (Power over Ethernet) Cabling System is precisely the key solution born for this purpose.

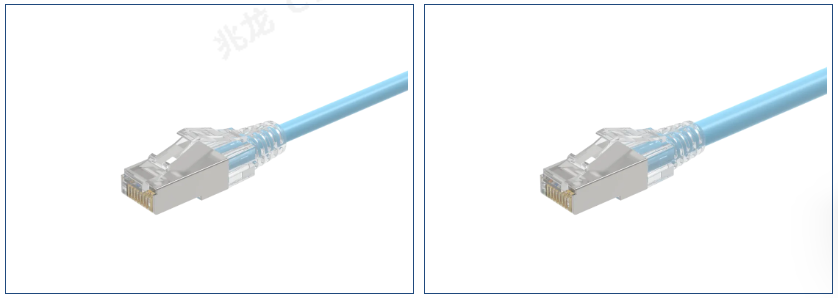

Zhaolong 10G PoE Cabling System – Cat 6A Ultra-Thin Shielded Patch Cord and Cat 6A Shielded Patch Cord

Why Must Smart Buildings Choose a 10G PoE Cabling System?

The so-called "10G PoE Cabling System" typically refers to a structured cabling system based on Cat 6A/Class EA architecture, supporting both 10GBASE-T high-speed data transmission and PoE/PoE++ remote powering capabilities.

To fundamentally solve the aforementioned challenges, priority must be given to cabling systems possessing the following traits:

- Future-Proof Investment Protection: 10 Gigabit (10Gbps) bandwidth and high-power PoE (e.g., PoE++) reserve ample space for technological evolution over the next 5–10 years (e.g., Wi-Fi 7, immersive applications), preventing the network layer from prematurely becoming a ceiling for business development.

- Simplified Architecture, Lower Total Cost of Ownership (TCO): Transmitting both data and power (PoE/PoE++) over a single network cable drastically simplifies traditional independent power cabling, reduces design and construction complexity, and significantly lowers long-term maintenance costs. This aligns with the relevant requirements for smart buildings and remote power applications in the GB/T 18233 series of structured cabling standards.

- Supports High-Reliability, High-Density Applications: It provides stable, high-quality data channels and centralized power supply for critical services like HD video surveillance, high-density wireless coverage, and digital signage, ensuring business continuity.

- Complies with Industry Standards & Best Practices: Its design adheres to the stringent requirements for channel performance and heat resistance in international generic cabling standards like ISO/IEC 11801-1, making it a rational choice for both new construction and renovation projects.

- Enables Smart Management & Energy Efficiency: It provides a stable and reliable "data + power" dual link for Building Automation Systems (BAS), Energy Management Systems (EMS), etc., forming the foundation for intelligent device coordination and refined management.

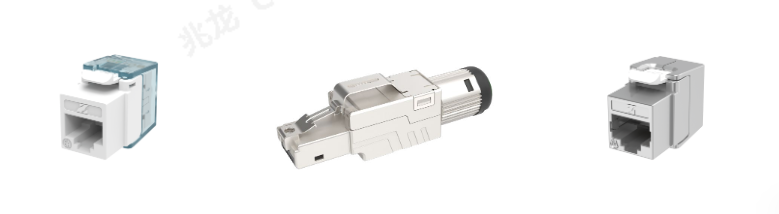

Zhaolong 10G PoE Cabling System – Cat 6A Information Module

Building the "Data + Power" Highway for Smart Buildings

Addressing the above needs, solutions represented by the Zhaolong 10G PoE Cabling System demonstrate their core value:

1. Excellent Performance, Facing Challenges Head-On

- 10G Performance: Supports 10GBASE-T applications, provides 500MHz bandwidth, meeting future high-speed network demands.

- Powerful Power Delivery: Supports IEEE 802.3bt Type 4 PoE++ applications, with PSE-side power delivery capability up to 90W, meeting the power needs of high-power APs, smart display terminals, and other devices.

- Forward-Looking Heat Dissipation: Fully considers the cable temperature rise challenge from high-power PoE applications. By selecting low-loss copper conductors with appropriate wire gauges (e.g., 23AWG and above) to reduce DC resistance, and optimizing heat dissipation through cable core structure and sheath materials; additionally, using effective shielding structures (e.g., FTP/SFTP) ensures signal transmission stability in complex environments, comprehensively guaranteeing long-term, high-load operational reliability of the system.

- High Reliability: Employs effective shielding structures (e.g., FTP/SFTP), significantly resisting electromagnetic interference and ensuring signal transmission stability in complex environments. Provides solutions like small-diameter cables and ultra-thin patch cords, effectively alleviating the "cable jungle" problem, facilitating installation and maintenance.

2. Complete End-to-End Solution

Provides a complete end-to-end system from Cat 6A cables, modules, patch panels to patch cords, ensuring consistent channel performance and simplifying procurement and operation processes.

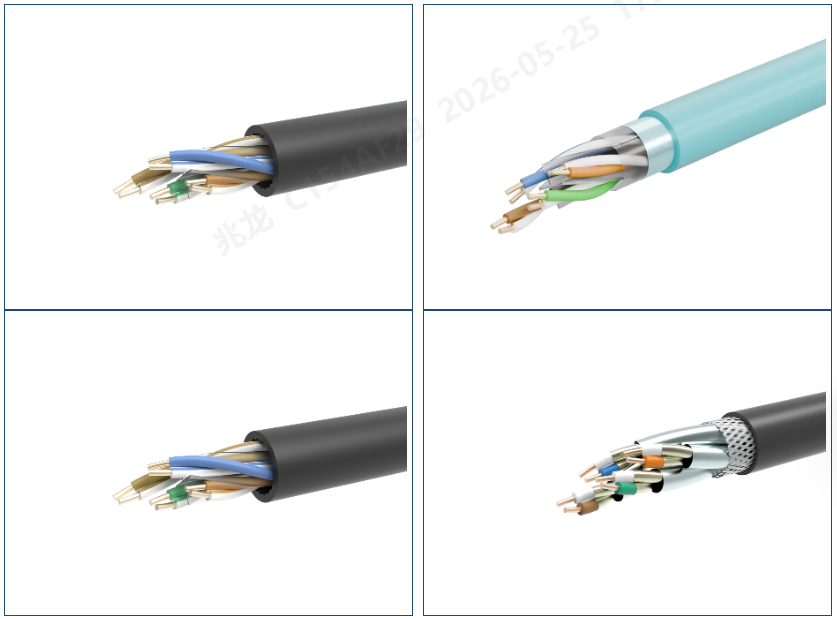

Zhaolong 10G PoE Cabling System – Cat 6A Cable

Supplementary Note on Cable Category:

Although standard Cat 6 cabling systems can technically support PoE++ applications, Cat 6A (Augmented Category 6) systems are more recommended for long-term, high-density deployment of PoE devices (especially 90W high-power). This is primarily because Cat 6A cables typically have better heat dissipation performance and stronger resistance to alien crosstalk, enabling them to better handle the cable temperature rise challenges posed by high-power PoE applications, and providing ample performance headroom for 10GBASE-T data transmission, thereby ensuring long-term operational stability and reliability.

From National Landmarks to Smart Campuses: Successful Practice of 10G PoE Systems in Multiple Scenarios

The system has been successfully applied in multiple landmark projects, undergoing rigorous validation in different scenarios:

- Cultural Landmark (Hangzhou National Archives of Publications and Culture): Deployed Zhaolong's highly reliable cabling system, stably supporting key systems such as facility-wide security monitoring, intrusion alarms, and the digital exhibition hall's naked-eye 3D display, achieving comprehensive smart operation and management.

- Smart Campus (Chongqing College of Electronic Engineering): Deployed a campus-wide 10G PoE cabling system in the new campus, providing a unified, secure, and efficient foundational network platform for smart classrooms, security monitoring, and the data center, strongly supporting teaching and research innovation.

- Commercial Complex (Shenzhen Langjun Plaza): Adopted this integrated solution, simplifying the cabling structure for complex business formats, successfully meeting the stable transmission needs for high-speed data, voice, video, and intelligent control signals in commercial office areas.

- Corporate Headquarters Campus (Huazhu Group Headquarters): Selected Zhaolong's S-Series Class E/EA and high-density fiber optic cabling systems. With their high reliability and scalability, they comprehensively ensure the stable operation and data interaction of various intelligent systems within the multi-functional complex comprising offices, R&D, and hotels.

If you are planning or upgrading a smart building project and are looking for a reliable cabling solution that simplifies deployment and stands the test of time, you can visit the Zhaolong Official Self-Operated Mall (www.zlstore.com), access the complete product catalog and technical documentation, and enjoy one-stop services from professional consultation and solution selection to logistics and delivery.
