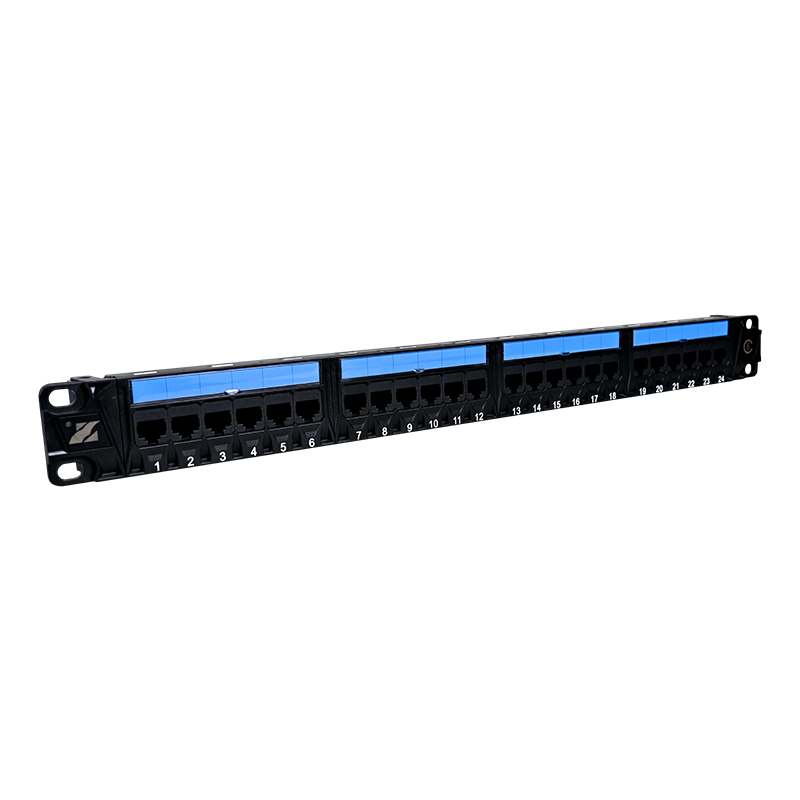

24 Port CAT6 Unshielded Patch Panel

High-quality cold-rolled steel plate, electrostatic spraying
PCB optimization compensation scheme, higher margin index
Meet UL and REACH requirements
Availability:
Quantity:
24 Port CAT6 Unshielded Patch Panel
  • zhaolong

MATERIAL

Metal plate:

high quality cold rolled plate

front endPINNeedle part:

phosphor bronze, nickel plated first60μ, Outer tinned120μ, And then contact the plug area50μGold-plated

Back sideIDCClamping part:

phosphor bronze, nickel plating first100μ, Outer tinned200μ Plastic part: meetUL94V-0


PHYSICAL PARAMETERS

Plug life:

750Times

Wiring diameter:

twenty twoTo26AWGSolid conductor

Operating temperature:

-10° C to60° C

storage temperature:

-40° C to68° C

Relative humidity:

10% ~ 90%


ELECTRICAL PARAMETERS

Insulation resistance:

500mΩ

Pressure resistance:

1000VAC

DC:

1.5Amps

DC Resistance:

0.1Ω

Contact resistance:

20mΩ
