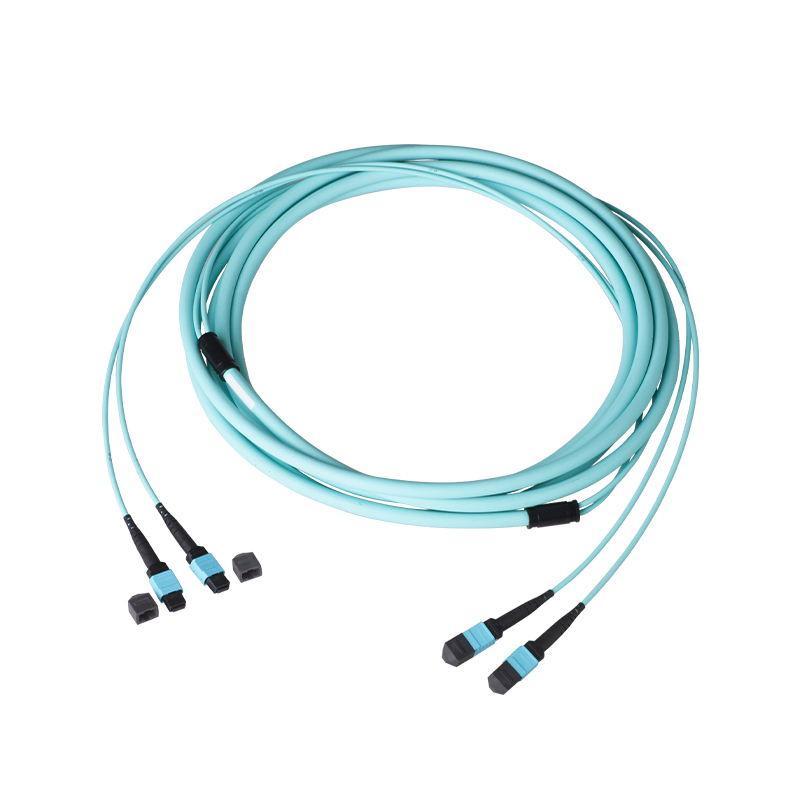

MPO backbone optical cable

Designed for 10G ~ 100G transmission
Optical fiber performance meets 10 Gigabit multimode OM3, OM4; zero water peak single-mode OS2 optical cable jacket flame retardant grade meets low smoke and halogen-free or UL OFNR, OFNP and other high density
Miniaturized imported high-precision connector components, with features such as resistance to plugging, low loss, and good interchangeability; high-quality optical fiber ribbon, excellent optical performance; components are fully ground and 100% performance tested to ensure high-quality optical performance of the product; A single bar can support 12~144 core capacity, saving cabinet space; length, jacket flame retardant level can be customized, plug and play structure, greatly reducing network management and maintenance costs. Using high-quality environmentally friendly materials, in line with RoHS requirements
Availability:
Quantity:
MPO backbone optical cable
MPO backbone optical cable
MPO backbone optical cable
  • MPO-LC

  • zhaolong

OPTICAL PERFORMANCE

Typical insertion loss:

≤ 0.50 dB(Single mode)

≤ 0.50 dB(multimode)

Maximum insertion loss:

≤ 0.35 dB(Single mode)

≤ 0.35 dB(multimode)

Typical back reflection (single mode):

>60 dB(Single mode)

>20 dB(multimode)

可重复使用性(200 次插拔):

>0.3 dB(Single mode)

>0.2 dB(multimode)


PHYSICAL PARAMETERS

Operating temperature:

-20 °C~ 60 °C(PVC)

-30 °C~ 60 °C(LSZH)

Storage temperature:

-40 °C~ 68 °C

Relative humidity:

10% ~ 90%
