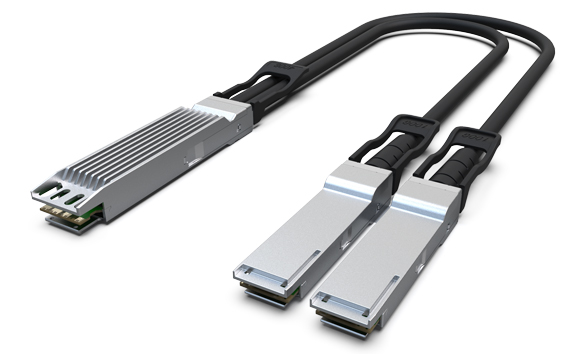

OSFP 400G to 2* QSFP56 200G DAC

Zhaolong OSFP (Octal Small Form Factor)-copper-assembly is embedded with eight high speed electrical lanes with 28G NRZ and 56G PAM-4 signaling protocols per channel, which can provide 200G( 8X 28G) and 400G(8X 56G PAM-4) total bandwidth to meet the needs
Availability:
Quantity:
OSFP 400G to 2* QSFP56 200G DAC
  • OSFP 400G to 2* QSFP56 200G DAC

  • zhaolong

Features and Benefits
Compliant with IEEE 802.3cd (400GBASE-CR8) Standard
Compliant with IEEE 802.3bj (100GBASE-CR4) Standard
Compliant with IEEE 802.3by (25 Ethernet) Standard
Data Rate : NRZ 28G & 56G PAM-4 Per Channel Total Bandwidth 400 Gbps(8X 56G PAM-4)
Interface  Compliant with OSFP MSA
Low Power Consumption < 0.5W (Passive)
Support Wire AWG : 32/ 30 / 28/ 27
Support Length (Passive DAC) : 0.5- 3.0 Meter
EEPROM Content follow CMIS Standard and can be customized
LSZH Products Available

TARGET MARKET
400G/200G Ethernet
8x InfiniBand™  EDR,HDR
Fibre Channel
Storage, Switch, & RAID Systems
High-Performance Computing (HPC)
Network Interface Cards (NIC's)
Telecommunication Equipment
Data Center and Enterprise Storage Systems
