PROFIBUS-DP ARM

TECHNICAL PARAMETER

—Temperature range: -40℃~80℃

—Characteristic impedance: 150±15Ω@3-20MHz

—Conductor DC resistance (20℃): ≤55Ω/km

—Insulation resistance: ≥1GΩ.km

—Test voltage: 1000V/min(DC)

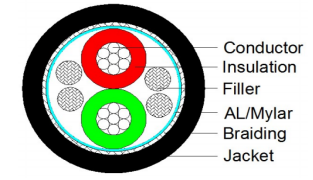

CABLE STRUCTURE

Conductor: solid or stranded bare copper conductor

Insulation: Foamed PE

Color: red, green

Shielding: aluminum foil wrapped and tinned copper braid

Inner sheath: see attached table

Armor: galvanized steel wire braid

Sheath: see attached table

Colour: Black

FEATURES

Stable transmission performance

High flame resistance, meet IEC 60332-3-22, IEC 60332-1-2

Has good resistance to external electromagnetic interference

The armored structure has excellent compressive and tensile properties

SHF2 sheath is particularly resistant to oil

Low smoke, halogen free, UV resistant
