Full Guide on Product Selection & Industry Compliance Standards

In low-voltage engineering, telecom infrastructure, campus construction and data center projects, the selection of outdoor optical cables plays a decisive role. Improper cable selection will lead to high rework costs, project acceptance obstacles and heavy long-term maintenance burdens.



Nowadays, loose-tube optical cables feature outstanding stability and reliability, and fully comply with China national standard YD/T 901-2018. They have been widely adopted to serve over 90% of outdoor backbone links and become the mainstream solution for such scenarios.



With more than 30 years of in-depth experience in the communication industry, Zhaolong Interconnect is a leading domestic supplier of digital communication cables and systematic solutions. We provide mature loose-tube optical cable products and tailored solutions, delivering solid, stable and high-performance connectivity for all outdoor backbone transmission applications.





What Is Loose-Tube Optical Cable?

Simply put, a loose-tube optical cable is structured with multiple loose tubes stranded around a central strength member. It adopts precisely controlled fiber excess length design, delivering superior physical protection and excellent mechanical properties.



Specially engineered for long-haul, high-bandwidth transmission under harsh outdoor operating conditions, it is also the standard mainstream structure specified in YD/T 901-2018 for outdoor communication optical cables.



Systematic Structure Design Delivers All-Round Protection

Our loose-tube optical cables are built with optimized systematic design, fully satisfying strict requirements on outdoor backbone links in terms of protection performance, operational reliability and long-term service stability. Core advantages are listed as below:



1. Full Cross-section Water-blocking Design

The cable core is fully filled with high-performance water-blocking compound to achieve complete waterproof and moistureproof effect, effectively isolating rainwater and humid air for stable long-term outdoor operation.



2. High-strength Mechanical Resistance

Equipped with metallic or non-metallic central strength members, the cable boasts excellent tensile strength and crush resistance, ensuring stable performance for aerial laying, direct burial and duct installation.

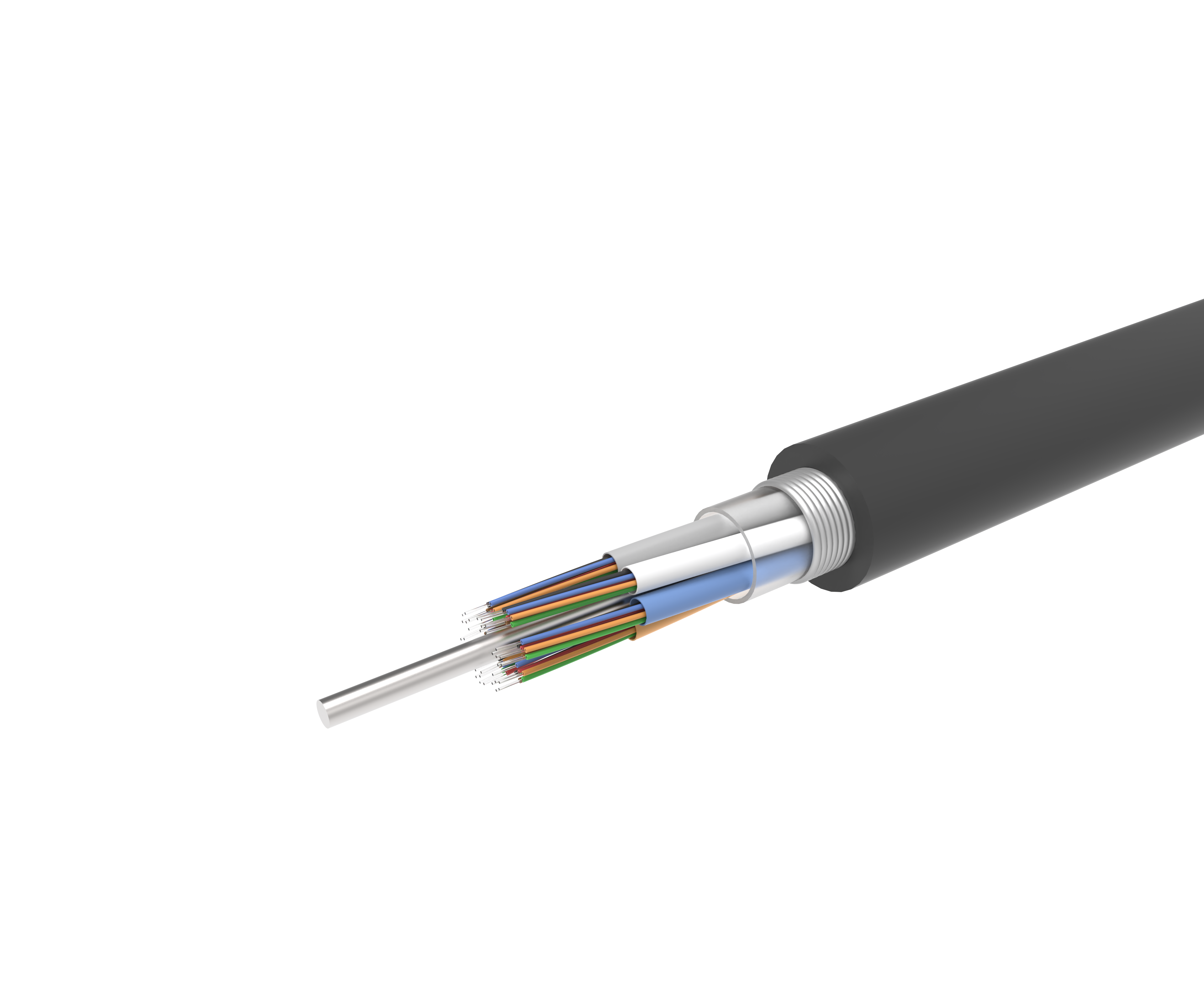

Zhaolong GYTA Loose-Tube Optical Cables



3. High-precision Loose Tube Protection

Premium PBT and modified PP/PC loose tubes are adopted to fully shield optical fibers, effectively avoiding fiber breakage caused by bending and extrusion, and guaranteeing consistent and stable signal transmission.



4. Complete Fiber Count Specification

Available in full fiber counts ranging from 4 cores to 288 cores, perfectly meeting demands from small-capacity access networking to large-capacity backbone data transmission.

Zhaolong GYTA Outdoor Optical Cable



5. Strict National Standard Compliance

All products are manufactured in full accordance with YD/T 901-2018, all technical indicators meet official standards to ensure smooth project acceptance.

6. Ultra-long Service Lifespan

Weather-resistant outer sheath effectively resists aging and ultraviolet radiation, with a designed service life of over 20 years, realizing one-time installation and long-term stable operation.

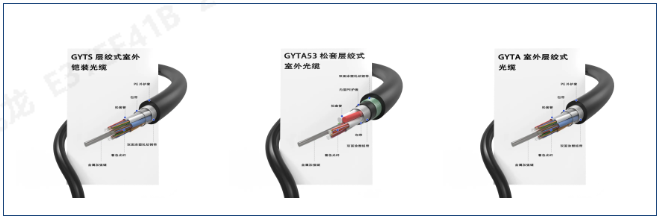

Zhaolong Main Cable Models | Quick Selection Guide

We have formed a complete loose-tube optical cable product series to fit diverse outdoor laying environments. Three mainstream models for quick reference:

• GYTA: Aluminum-plastic composite sheath loose-tube cable, ideal for duct laying and non-self-supporting aerial installation

• GYTS: Steel-plastic composite sheath loose-tube cable with higher mechanical strength, the preferred choice for high-humidity areas

• GYTA53: Steel tape armored double-sheathed optical cable, specially designed for direct burial, rodent prevention and heavy pressure-resistant scenarios

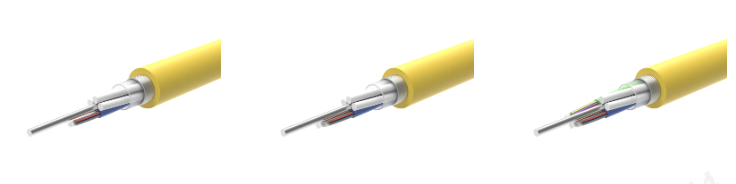

Zhaolong Full Range Loose-Tube Optical Cables





Main Application Scenarios

Thanks to strong environmental adaptability, superior mechanical protection and high operational reliability, our loose-tube optical cables are widely applied in all outdoor backbone links requiring stable signal transmission:

• Telecom operator backbone communication networks

• Outdoor network links for industrial parks and campuses

• Municipal wiring for schools, hospitals and smart city projects

• Broadband backbone networking for residential communities

• Cross-site outdoor interconnection of data centers

• Communication networking for power systems, rail transit, government and enterprise private networks





Zhaolong Interconnect: Reliable Quality & Strong Comprehensive Strength

Zhaolong loose-tube optical cables feature high mechanical protection, strong environmental adaptability and standard-compliant performance, which fully match the core demands of outdoor communication backbone for stable, reliable and long-term continuous operation.



All superior performances are supported by our complete independent manufacturing and professional testing system. We own modern standardized production bases to realize full-process quality control from raw materials to finished optical cables. Our CNAS accredited laboratory (Certificate No. L14161) conducts rigorous testing on insertion loss, return loss and other core optical parameters, ensuring stable and consistent quality of every batch of products.

All our optical cabling products also comply with international standards such as IEC 61753. The reliable performance has been fully verified in numerous key projects covering government institutions, telecom operators, large enterprises and public infrastructure.



Our products have achieved stable running in dozens of landmark projects including Zhoupu Data Center, Guangxi Wuxiang Mobile IDC, BGI Data Center, Huadi Group Data Center, Beidou Data Center, Songjiang Data Center, Chengdu Kecheng Cloud Data Center and Jiangyin Municipal Government Data Center. Featuring low failure rate, easy installation and convenient later maintenance, our products have won wide recognition from engineering contractors and end clients.



Choose YD/T 901-2018 compliant Zhaolong loose-tube optical cables to satisfy all strict requirements of outdoor communication backbone construction. We deliver stable and long-term transmission guarantee for engineering projects, and help you achieve efficient field deployment and hassle-free project acceptance.
