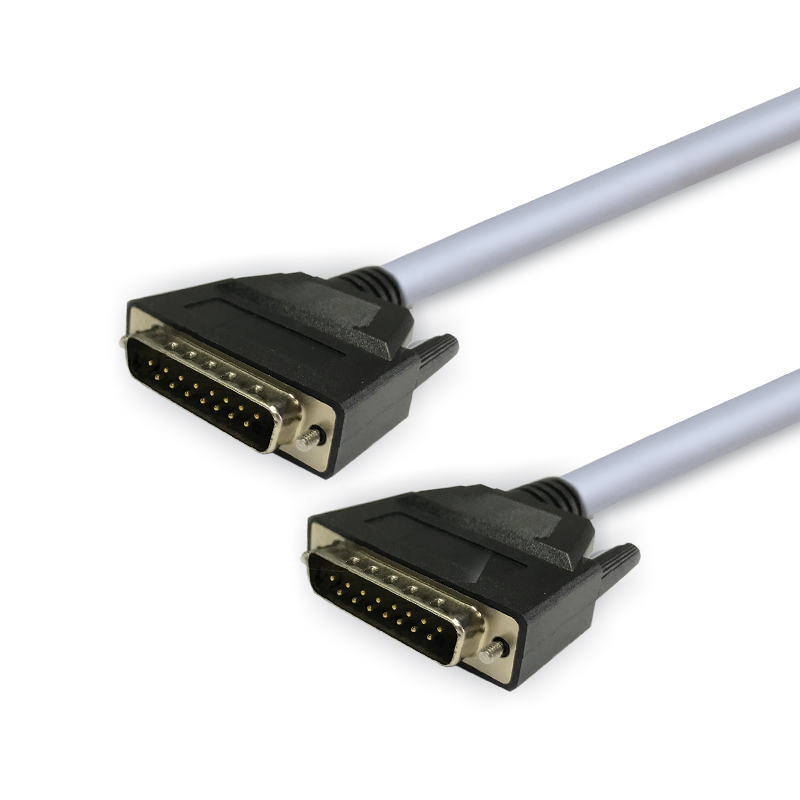

DB15 Assemblies

Suitable for use in automation technology and industrial applications,external interconnection of serial device and industrial PC.Suitable for fixed application and indoor installation.Shielded type and be used in the place of high electrical interference.
Quantity:
  • Assemblies
  • zhaolong

TECHNICAL PARAMETERS

—Temperature Range

    Fixed Application : PVC : -20℃~70℃

    During the Installation : PVC : -5℃~70℃

—Minimum Bending Radius

    Fixed Application : 10D(D=cable diameter)

    During the Installation : 15D(D=cable diameter)


CABLE CONSTRUCTION

Conductor:

Fine stranded bare copper wire

Insulation:

PVC

Shielded:

AL/Mylar screen(AL) or AL/Mylar screen and tinned copper(AL+braid)

Jacket:

PVC

Color:

Grey

Assembly with both ends of DB15 connectors


PROPERTIES

Cable flame resistance according to IEC60332-1

Have excellent performance of resistant to external EMI,especially for double shielded

Long service life

Flexible use,can change equipments easily

Provide a variety of length
