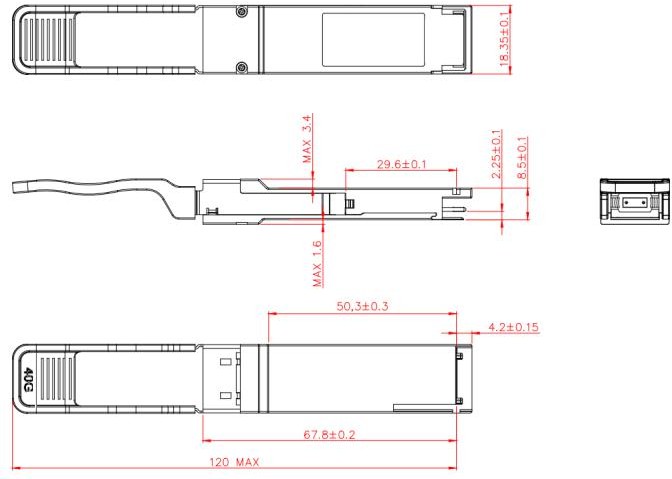

40G QSFP+ SR4 Transceiver
zhaolong
Application
• Data center & Networking Equipment
• Servers/Storage Devices
• High Performance Computing (HPC)
• Switches/Routers
• Telecom Central Offices (CO)
• Test and Measurement Equipment
Features
• Compliant with QSFP+ MSA Specification
• Wide Operating Temperature(-40°C~85°C)
• 4x10Gbps 850nm VCSEL-based Transmitter
• Maximum Link Length of 100m via OM3 Multimode Fiber (MMF)
Parameter | Symbol | Min. | Max. | Unit |
Storage Temperature | Tstg | -40 | +85 | °C |
Operating relative humidity (Non- condensing) | RH | 0 | 85 | % |
Input Voltage | Vcc-0.3 | Vcc+0.3 | V | |
Supply Voltage | Vcc | -0.3 | 3.6 | dBm |
Parameter | Symbol | Min. | Type | Max. | Unit | NOTE |
Operating Case Temperature | Tc | 0 | +70 | ℃ | ||
Power Supply Voltage | Vcc | +3.135 | 3.3 | +3.465 | V | |
Signaling Rate each Channel | BR | 10.3125 | Gb/s | |||
Supply Noise Rejection | --- | --- | 100 | mV | ||
Receiver Differential Data Output | --- | 100 | Ohm | |||
Operating Distance | D | 100 | m | @ OM3 MMF |
Parameter | Symbol | Min. | Type | Max. | Unit | NOTE |
Power Consumption | 3.5 | W | ||||
Supply Current | Icc | 1050 | mA |
Parameter | Symbol | Min. | Typ. | Max. | Unit | NOTE |
Signaling rate, each lane (range) | GBb | 10.3125 | GBb | |||
Center Wavelength | λ | 840 | 850 | 860 | nm | |
RMS Spectral Width | SW | 0.6 | nm | |||
Average launch power, each lane | Pf | -8.4 | 2.4 | dBm | ||
Optical Modulation Amplitude (OMA), each lane | TxOMA | -6.4 | 3 | dBm | ||
Average launch power of OFF transmitter, each lane | -30 | dBm | ||||
Extinction ratio | ER | 3 | dB | |||
Optical return loss tolerance | 12 | dB |
Receiver Characteristics (T=25℃, unless noted)
Parameter | Symbol | Min. | Typ. | Max. | Unit | NOTE |
Signaling rate, each lane (range) | GBb | 10.3125 | GBb | |||
Center Wavelength | λ | 840 | 860 | nm | ||
Damage threshold | 3.4 | dBm | ||||
Average power at receiver input, each lane | -10.3 | 2.4 | dBm | |||
Receive power, each lane (OMA) | 3 | dBm | ||||
Receiver sensitivity (OMA) | SOMA | -11.1 | dBm | BER@5E-5 | ||
Receiver reflectance | -12 | dB | ||||
LOS Assert | LOSA | -30 | dBm | |||
LOS De-Assert | LOSD | -11 | dBm | |||
LOS Hysteresis | 0.5 | dB |

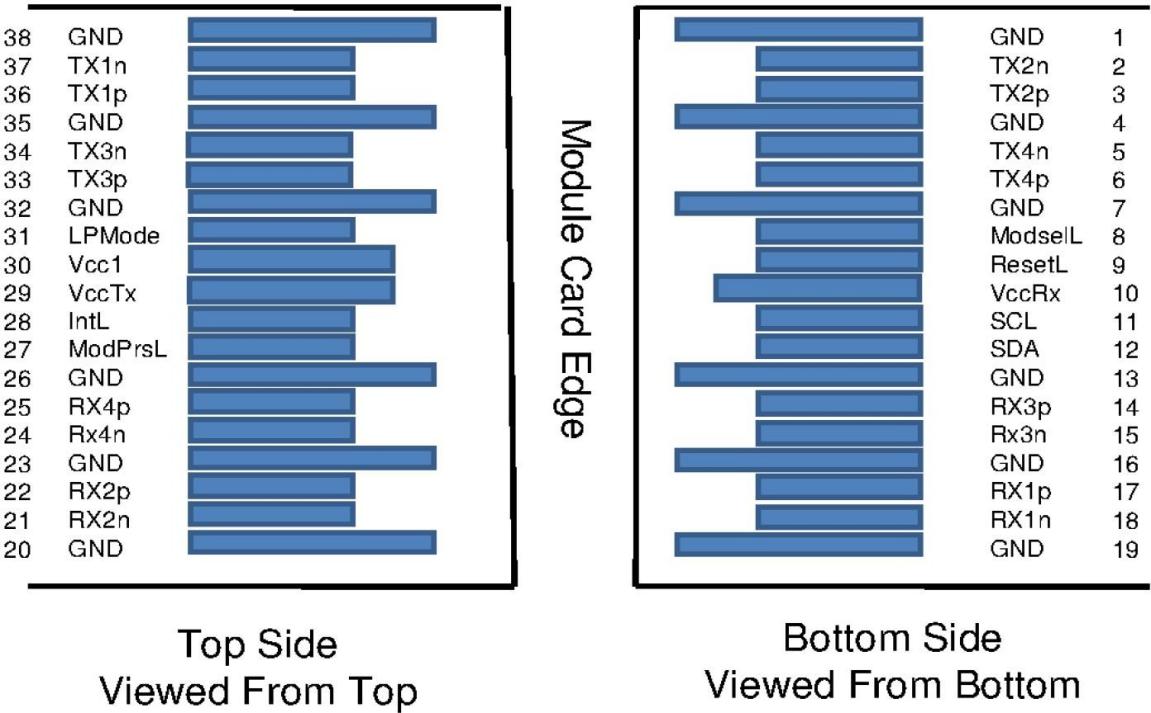

PIN | Logic | Symbol | Name/Description |
1 | GND | Ground | |
2 | CML-I | Tx2n | Transmitter Inverted Data Input |
3 | CML-I | Tx2p | Transmitter Non-Inverted Data output |
4 | GND | Ground | |
5 | CML-I | Tx4n | Transmitter Inverted Data Input |
6 | CML-I | Tx4p | Transmitter Non-Inverted Data output |
7 | GND | Ground | |
8 | LVTTL-I | ModSelL | Module Select |
9 | LVTTL-I | ResetL | Module Reset |
10 | VccRx | ﹢3.3V Power Supply Receiver | |
11 | LVCMOS-I/O | SCL | 2-Wire Serial Interface Clock |
12 | LVCMOS-I/O | SDA | 2-Wire Serial Interface Data |
13 | GND | Ground | |
14 | CML-O | Rx3p | Receiver Non-Inverted Data Output |
15 | CML-O | Rx3n | Receiver Inverted Data Output |
16 | GND | Ground | |
17 | CML-O | Rx1p | Receiver Non-Inverted Data Output |
18 | CML-O | Rx1n | Receiver Inverted Data Output |
19 | GND | Ground |
20 | GND | Ground | |
21 | CML-O | Rx2n | Receiver Inverted Data Output |
22 | CML-O | Rx2p | Receiver Non-Inverted Data Output |
23 | GND | Ground | |
24 | CML-O | Rx4n | Receiver Inverted Data Output |
25 | CML-O | Rx4p | Receiver Non-Inverted Data Output |
26 | GND | Ground | |
27 | LVTTL-O | ModPrsL | Module Present |
28 | LVTTL-O | IntL | Interrupt |
29 | VccTx | +3.3 V Power Supply transmitter | |
30 | Vcc1 | +3.3 V Power Supply | |
31 | LVTTL-I | LPMode | Low Power Mode |
32 | GND | Ground | |
33 | CML-I | Tx3p | Transmitter Non-Inverted Data Input |
34 | CML-I | Tx3n | Transmitter Inverted Data Output |
35 | GND | Ground | |
36 | CML-I | Tx1p | Transmitter Non-Inverted Data Input |
37 | CML-I | Tx1n | Transmitter Inverted Data Output |
38 | GND | Ground |
The following characteristics are defined over recommended operating conditions
Parameter | Accuracy | Unit |
Internally measured transceiver temperature | +/-3 | deg.C |
Internally measured transceiver supply voltage | +/-3 | % |
Measured Tx bias current | +/-10 | % |
Measured Tx output power | +/-3 | dB |
Measured Rx received average optical power | +/-3 | dB |
Data Rate | Factor | Optical | Wavelength | Reach | |
40G | QSFP+ | SR4 | MPO | 850nm | 100m/300m |
This transceiver is specified as ESD threshold 1KV for high speed data pins based on Human Body Model per ANSI/ESDA/JEDECJS-001. The units are subjected to 15kV air discharges during operation and 8kV direct contact discharges to the case. However, normal ESD precautions are still
required during the handling of this module. This transceiver is shipped in ESD protective packaging. It should be removed from the packaging and handled only in an ESD protected environment.
The performance figures, data, and any illustrative material presented in this datasheet are typical and must be explicitly confirmed in writing by ZHAOLONG before they are deemed applicable to any specific order or contract.
By ZHAOLONG's policy of continuous improvement, specifications may change without prior notice. The publication of information in this datasheet does not imply exemption from patent or other protective rights held by ZHAOLONG or other parties. Additional details can be obtained from any ZHAOLONG sales representative.
Revision Record
Rev. | Comments | Author | Date |
A01 | Initial Release | James Chen | 10/01/2023 |
Application
• Data center & Networking Equipment
• Servers/Storage Devices
• High Performance Computing (HPC)
• Switches/Routers
• Telecom Central Offices (CO)
• Test and Measurement Equipment
Features
• Compliant with QSFP+ MSA Specification
• Wide Operating Temperature(-40°C~85°C)
• 4x10Gbps 850nm VCSEL-based Transmitter
• Maximum Link Length of 100m via OM3 Multimode Fiber (MMF)
Parameter | Symbol | Min. | Max. | Unit |
Storage Temperature | Tstg | -40 | +85 | °C |
Operating relative humidity (Non- condensing) | RH | 0 | 85 | % |
Input Voltage | Vcc-0.3 | Vcc+0.3 | V | |
Supply Voltage | Vcc | -0.3 | 3.6 | dBm |
Parameter | Symbol | Min. | Type | Max. | Unit | NOTE |
Operating Case Temperature | Tc | 0 | +70 | ℃ | ||
Power Supply Voltage | Vcc | +3.135 | 3.3 | +3.465 | V | |
Signaling Rate each Channel | BR | 10.3125 | Gb/s | |||
Supply Noise Rejection | --- | --- | 100 | mV | ||
Receiver Differential Data Output | --- | 100 | Ohm | |||
Operating Distance | D | 100 | m | @ OM3 MMF |
Parameter | Symbol | Min. | Type | Max. | Unit | NOTE |
Power Consumption | 3.5 | W | ||||
Supply Current | Icc | 1050 | mA |
Parameter | Symbol | Min. | Typ. | Max. | Unit | NOTE |
Signaling rate, each lane (range) | GBb | 10.3125 | GBb | |||
Center Wavelength | λ | 840 | 850 | 860 | nm | |
RMS Spectral Width | SW | 0.6 | nm | |||
Average launch power, each lane | Pf | -8.4 | 2.4 | dBm | ||
Optical Modulation Amplitude (OMA), each lane | TxOMA | -6.4 | 3 | dBm | ||
Average launch power of OFF transmitter, each lane | -30 | dBm | ||||
Extinction ratio | ER | 3 | dB | |||
Optical return loss tolerance | 12 | dB |
Receiver Characteristics (T=25℃, unless noted)
Parameter | Symbol | Min. | Typ. | Max. | Unit | NOTE |
Signaling rate, each lane (range) | GBb | 10.3125 | GBb | |||
Center Wavelength | λ | 840 | 860 | nm | ||
Damage threshold | 3.4 | dBm | ||||
Average power at receiver input, each lane | -10.3 | 2.4 | dBm | |||
Receive power, each lane (OMA) | 3 | dBm | ||||
Receiver sensitivity (OMA) | SOMA | -11.1 | dBm | BER@5E-5 | ||
Receiver reflectance | -12 | dB | ||||
LOS Assert | LOSA | -30 | dBm | |||
LOS De-Assert | LOSD | -11 | dBm | |||
LOS Hysteresis | 0.5 | dB |
PIN | Logic | Symbol | Name/Description |
1 | GND | Ground | |
2 | CML-I | Tx2n | Transmitter Inverted Data Input |
3 | CML-I | Tx2p | Transmitter Non-Inverted Data output |
4 | GND | Ground | |
5 | CML-I | Tx4n | Transmitter Inverted Data Input |
6 | CML-I | Tx4p | Transmitter Non-Inverted Data output |
7 | GND | Ground | |
8 | LVTTL-I | ModSelL | Module Select |
9 | LVTTL-I | ResetL | Module Reset |
10 | VccRx | ﹢3.3V Power Supply Receiver | |
11 | LVCMOS-I/O | SCL | 2-Wire Serial Interface Clock |
12 | LVCMOS-I/O | SDA | 2-Wire Serial Interface Data |
13 | GND | Ground | |
14 | CML-O | Rx3p | Receiver Non-Inverted Data Output |
15 | CML-O | Rx3n | Receiver Inverted Data Output |
16 | GND | Ground | |
17 | CML-O | Rx1p | Receiver Non-Inverted Data Output |
18 | CML-O | Rx1n | Receiver Inverted Data Output |
19 | GND | Ground |
20 | GND | Ground | |
21 | CML-O | Rx2n | Receiver Inverted Data Output |
22 | CML-O | Rx2p | Receiver Non-Inverted Data Output |
23 | GND | Ground | |
24 | CML-O | Rx4n | Receiver Inverted Data Output |
25 | CML-O | Rx4p | Receiver Non-Inverted Data Output |
26 | GND | Ground | |
27 | LVTTL-O | ModPrsL | Module Present |
28 | LVTTL-O | IntL | Interrupt |
29 | VccTx | +3.3 V Power Supply transmitter | |
30 | Vcc1 | +3.3 V Power Supply | |
31 | LVTTL-I | LPMode | Low Power Mode |
32 | GND | Ground | |
33 | CML-I | Tx3p | Transmitter Non-Inverted Data Input |
34 | CML-I | Tx3n | Transmitter Inverted Data Output |
35 | GND | Ground | |
36 | CML-I | Tx1p | Transmitter Non-Inverted Data Input |
37 | CML-I | Tx1n | Transmitter Inverted Data Output |
38 | GND | Ground |
The following characteristics are defined over recommended operating conditions
Parameter | Accuracy | Unit |
Internally measured transceiver temperature | +/-3 | deg.C |
Internally measured transceiver supply voltage | +/-3 | % |
Measured Tx bias current | +/-10 | % |
Measured Tx output power | +/-3 | dB |
Measured Rx received average optical power | +/-3 | dB |
Data Rate | Factor | Optical | Wavelength | Reach | |
40G | QSFP+ | SR4 | MPO | 850nm | 100m/300m |
This transceiver is specified as ESD threshold 1KV for high speed data pins based on Human Body Model per ANSI/ESDA/JEDECJS-001. The units are subjected to 15kV air discharges during operation and 8kV direct contact discharges to the case. However, normal ESD precautions are still
required during the handling of this module. This transceiver is shipped in ESD protective packaging. It should be removed from the packaging and handled only in an ESD protected environment.
The performance figures, data, and any illustrative material presented in this datasheet are typical and must be explicitly confirmed in writing by ZHAOLONG before they are deemed applicable to any specific order or contract.
By ZHAOLONG's policy of continuous improvement, specifications may change without prior notice. The publication of information in this datasheet does not imply exemption from patent or other protective rights held by ZHAOLONG or other parties. Additional details can be obtained from any ZHAOLONG sales representative.
Revision Record
Rev. | Comments | Author | Date |
A01 | Initial Release | James Chen | 10/01/2023 |
