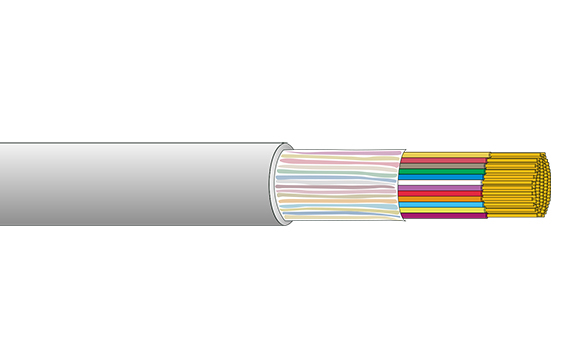

CAT3 Multipairs Cable

The use of high-quality oxygen-free copper material to ensure excellent tensile properties and electrical resistance performance, designed for telephone, multimedia and trunk system
Uses environmentally friendly materials and meets REACH and RoHS requirements
Availability:
Quantity:
  • zhaolong

REFERENCE STANDARD

IEC 60332-1、IEC 60332-3-24、EN50399、GB/T18015、 ISO/IEC11801、ANSI/TIA-568.2-D


PHYSICAL PARAMETERS

Conductor:

Solid bare copper 24AWG

Insulationmaterial:

High-density polyethylene

Insulationdiameter:

0.87±0.05 mm

Jacketdiameter:

11.3±0.8 mm (25 pairs)

15.0±1.0 mm (50 pairs)

20.2±1.0 mm (100 pairs)

Jacketmaterial:

PVC or PE

-30 °C~ 60 °C(PE)

-20 °C~ 60 °C(PVC)



ELECTRICAL PARAMETERS (20°C)

Transmission delay:

≤45ns / 100m

Transmission speed:

69%

Capacitance:

≤ 6.6 nf/100 m

DC resistance:

≤ 9.5 Ω/100 m

DC resistance unbalance:

≤5%
