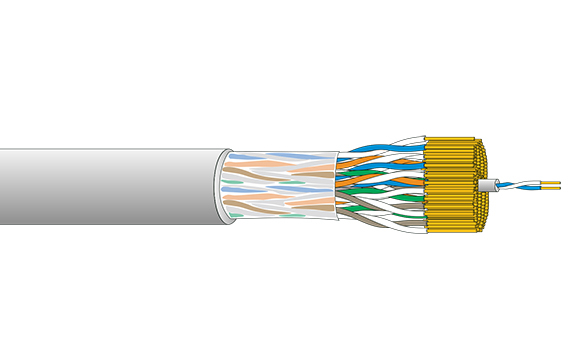

CAT5 Multipairs Cable

Use high-quality oxygen-free copper materials to ensure excellent tensile properties and resistance properties of the product. Designed for telephone, multimedia and backbone systems
Use environmentally friendly materials, comply with REACH and RoHS requirements
Availability:
Quantity:
  • zhaolong

REFERENCE STANDARD

IEC 60332-1、GB/T18015、ISO/IEC11801、 ANSI/TIA-568.2-D


PHYSICAL PARAMETERS

Conductor:

Solid bare copper 24AWG

Insulationmaterial:

High-density polyethylene

Insulationdiameter:

0.90 ±0.05mm

Jacketdiameter:

13.3 ±0.8mm

Jacketmaterial:

PVC

-20 °C~ 60 °C



ELECTRICAL PARAMETERS (20°C)

Transmission delay:

≤45ns / 100m

Transmission speed:

69%

Capacitance:

≤ 6.6 nf/100 m

DC resistance:

≤ 9.5 Ω/100 m

DC resistance unbalance:

≤5%
