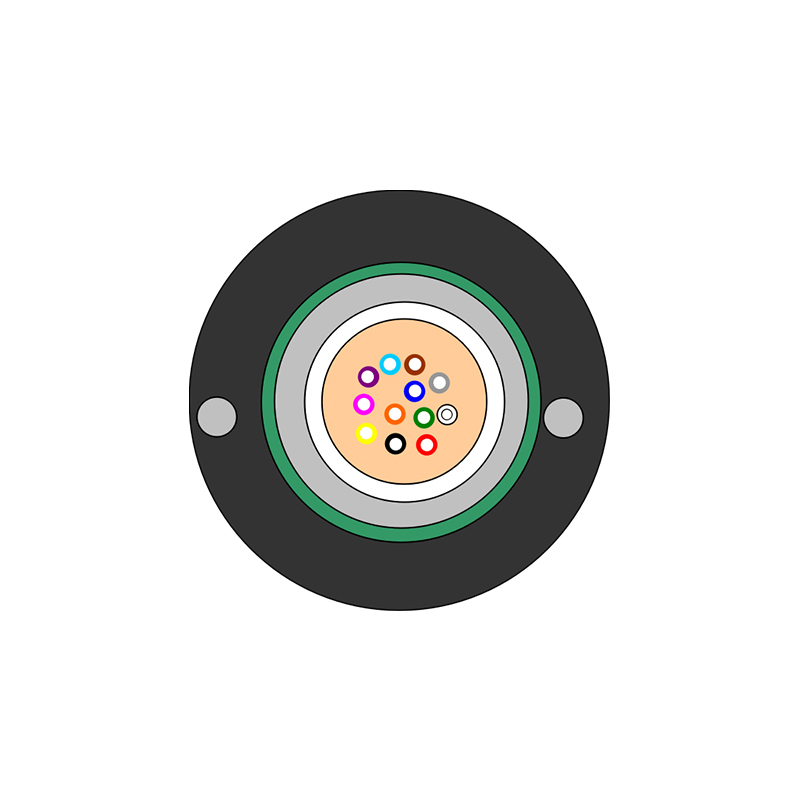

GYXTW Center Beam Tube Outdoor Optical Cable

PE sheath, good mechanical and physical properties
Cable core water blocking ointment, good water blocking properties
Parallel steel wire, excellent tensile performance Double-sided plastic coated steel belt to avoid extrusion, rodent damage
Sheath: PE
Availability:
Quantity:
GYXTW Center Beam Tube Outdoor Optical Cable
  • Cable

  • zhaolong

REFERENCE STANDARD

YD/T 901


MECHANICAL PROPERTIES

Tensile strength (long-term) :

600N

Tensile strength (short-term) :

1500N

Anti-stress (long-term) :

300(N/ 100 mm )

Anti-stress (short-term) :

1000(N /100 mm )

Bending radius (dynamic) :

200 mm

Bending radius (static) :

100 mm

Operating temperature :

-40 °C~ 70 °C


OPTICAL PERFORMANCE

Attenuation (dB/km) :

≤ 0.40(9/125 um,1310 nm)

≤ 0.30(9/125 um,1550 nm)

≤ 3.5(50/125 um,850 nm)

≤ 1.5(50/125 um,1300 nm)
