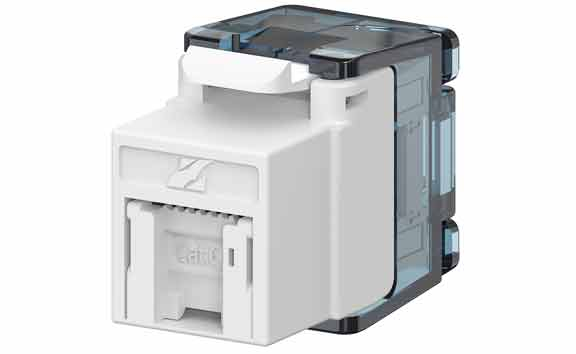

CAT6 Unshielded Outlet

PCB adopts optimized compensation design, high crosstalk margin
Support short link, support 6 connections
Tool-free termination, convenient and fast
Available in 8 colors to suit different needs
Uses environmentally friendly materials and meets UL, REACH, and RoHS requirements
Availability:
Quantity:
CAT6 Unshielded Outlet
  • zhaolong

MATERIAL

Plastic part:

ABS,meets theUL94V-0

front endPINNeedle part:

phosphor bronze, nickel plated first60μ, Outer tinned120μ, And then contact the plug area50μBack

sideIDCClamping part:

phosphor bronze, nickel plating first100μ, Outer tinned200μ Shielding shell: phosphor bronze (shielding module)


PHYSICAL PARAMETERS

Plug life:

750Secondary

wiring life:

200Times,twenty twoTo26AWGSolid conductor,twenty twoTo24AWG Solid core conductor (unshielded90Degree module)

Working temperature:

-10° C to60° C

Storage temperature:

-40° C to68° C

relative humidity:

10% ~ 90%


ELECTRICAL PARAMETERS

Insulation resistance:

500mΩ

Pressure resistance:

1000VAC

DC:

1.5Amps

DC Resistance:

0.1Ω

Contact resistance:

20mΩ
