zhaolong
REFERENCE STANDARD
UL444, UL1581, UL1666, IEC60332-1, IEC60332-3-24, EN50399
TEST STANDARD
ISO / IEC11801, ANSI / TIA-568-C.2

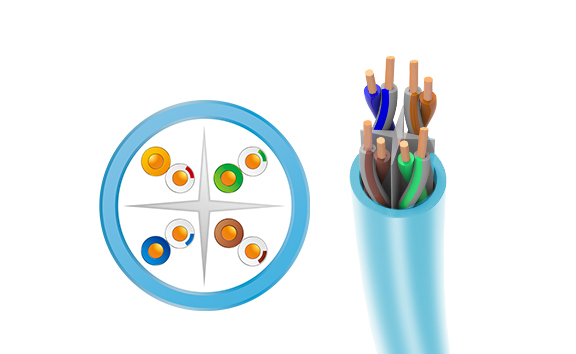

PHYSICAL PARAMETERS
Conductor:
solid bare copper
Insulation material:
high density polyethylene
Insulation diameter:
1.02 ± 0.03mm (unshielded ordinary), 1.02 ± 0.05mm (unshielded sawtooth type), 1.09 ± 0.03mm (shielded)
Single layer total shielding:
aluminum foil (shielding)
Double-layer total shielding:
aluminum foil + tinned copper, coverage rate ≥40% (braided shielding part)
Sheath diameter:
6.3 ± 0.4mm (unshielded ordinary), 7.1 ± 0.4mm (unshielded sawtooth type), 7.4 ± 0.4mm (F / UTP shielded), 7.8 ± 0.3mm (SF / UTP shielded)
Sheath material:
PVC or LSZH low-smoke halogen-free (according to different jackets), comply with RoHS and REACH requirements
Working temperature:
-30 ℃ to 50 ℃ (LSZH), -20 ℃ to 50 ℃ (PVC)
MECHANICAL PARAMETERS
Tensile strength before aging:
≥13.5Mpa (PVC), ≥10.0Mpa (LSZH low smoke halogen-free)
Elongation before aging:
≥150% (PVC), ≥125% (LSZH low smoke halogen-free)
Aging time:
100 ℃ × 24 hours × 7 days
Tensile strength after aging:
≥12.5Mpa (PVC), ≥8Mpa (LSZH low smoke halogen-free)
Elongation after aging:
≥125% (PVC), ≥100% (LSZH low smoke halogen-free)
Cold bending (-20 ± 2 ℃ × 4 hours):
8 times the outer diameter of the cable without cracking
