DeviceNet/CANopen Assemblies M12-M12

Suitable for use in automation technology and industrial applications,external interconnection of electronic equipment, designed for PROFIBUS-DP. Suitable for flexible use and indoor installation.

Quantity:
  • M12-M12
  • zhaolong

TECHNICAL PARAMETERS

—Temperature Range

    Fixed Application :

         PVC : -40℃~80℃

         PUR : -40℃~80℃

    Mobile Application :

         PVC : -5℃~70℃

         PUR : -20℃~80℃

—Characteristic Impedance

    150±15Ω@3~20MHz

—Protection Classification

    IP67

—Coding

    B

—Minimum Bending Radius

    Fixed Application : 8D(D=cable diameter)

    During the Installation : 15D(D=cable diameter)


CABLE CONSTRUCTION

Conductor:

Fined stranded bare copper wire

Insulation:

Foamed PE(signalpair),PE(powerpair)

Shielded:

AL/Mylar individual screen and tinned copper wire overall braid

Jacket:

PVC

PUR

Color:

Purple(similar to RAL4001)

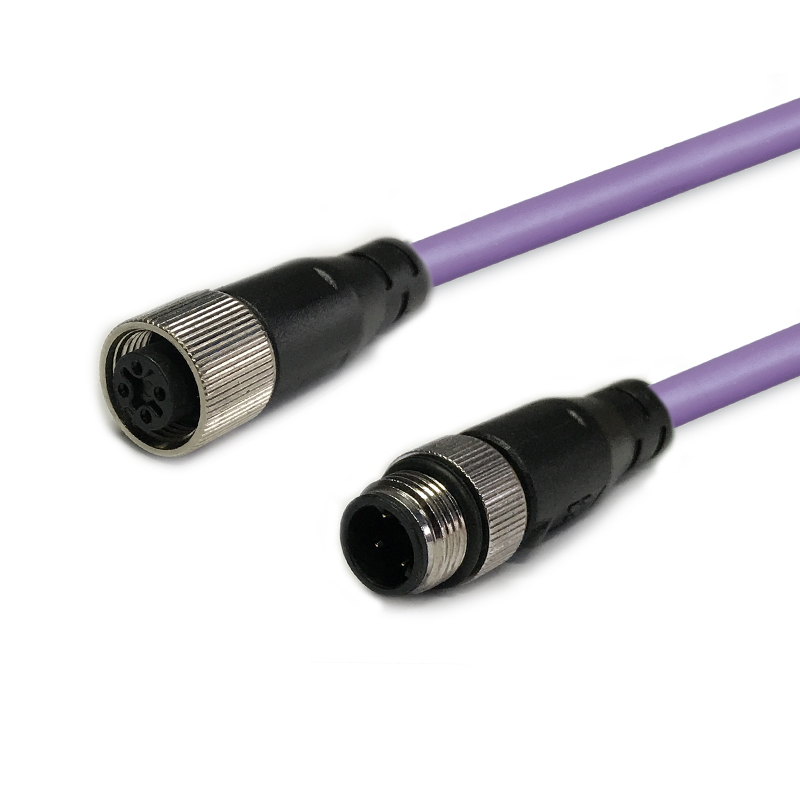

Patchcord with both ends of 5 core M12 connectors


PROPERTIES

Cable flame resistance according IEC60332-1

Have excellent performance of resistant to external EMI

Resistant to abrasion and oil, especially for PUR

Long service life

Flexible use, can change equipments easily

Provide a variety of length and sheath
