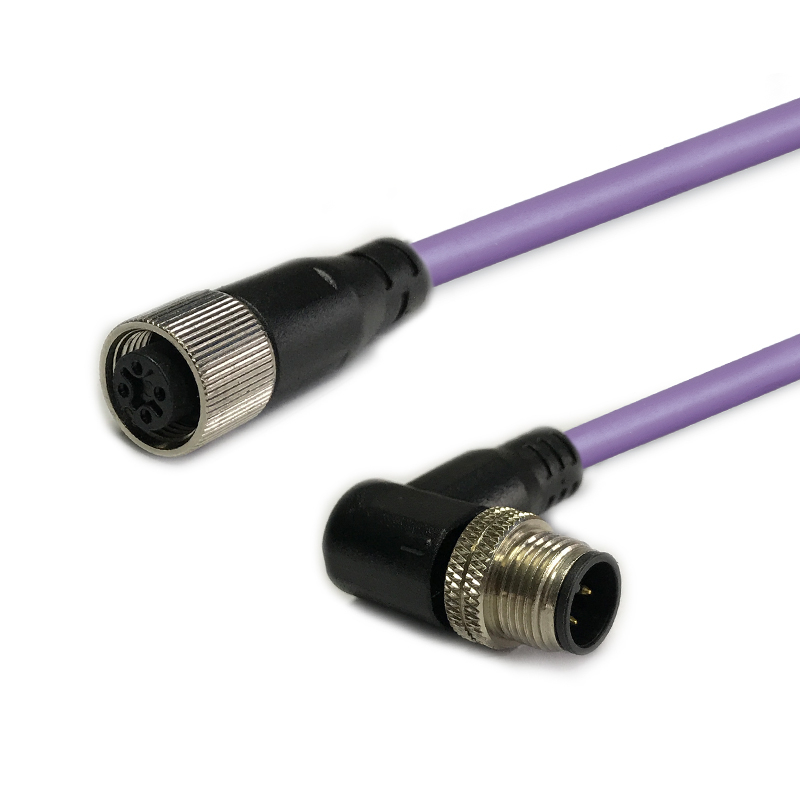

PROFIBUS-DP Assemblies M12-M12

Suitable for use in automation technology and industrial applications, external interconnection of electronic equipment, designed for DeviceNet&CANopen. Suitable for flexible use and indoor installation.
Quantity:
  • M12-M12
  • zhaolong

TECHNICAL PARAMETERS

—Temperature Range

    Fixed Application :

         PVC : -40℃~80℃

         PUR : -40℃~80℃

    Mobile Application :

         PVC : -5℃~70℃

         PUR : -20℃~80℃

—Characteristic Impedance

    150±15Ω@1MHz

—Protection Classification

    IP67

—Coding

    A

—Minimum Bending Radius

    Fixed Application : 10D(D=cable diameter)

    Mobile Application : 15D(D=cable diameter)


CABLE CONSTRUCTION

Conductor :

Fine stranded bare copper wire

Insulation :

Foamed PE(signal pair), PE(power pair)

Shield :

AL/Mylar individual screen and tinned copper wire overall braid

Jacket :

PVC

PUR

Color:

purple (similar to RAL 4001)


Patchcord with both ends of 5 core M12 connectors


PROPERTIES

Cable flame resistance according to IEC60332-1

Have excellent performance of resistant to external EMI

Resistant to abrasion and oil,especially for PUR

Long service life

Flexible use,can change equipments easily

Provide a variety of length and sheath
