Endoscope cable

This cable is used to connect the endoscopes and other medical
facilities to examine organs of human.
Availability:
Quantity:
  • Endoscope cable

  • zhaolong

TECHNICAL DATA

—Temperature Ranges

 -15℃ ~80℃

—Characteristic Impedance

 50±5Ω

—Dielectric Strength

 AC500V

 1min

—Conductor Resistance

 (20℃)≤7500Ω/km

—Insulation Resistance

 1000MΩ·km

—Minimum Bending Radius

 15xcable diameter

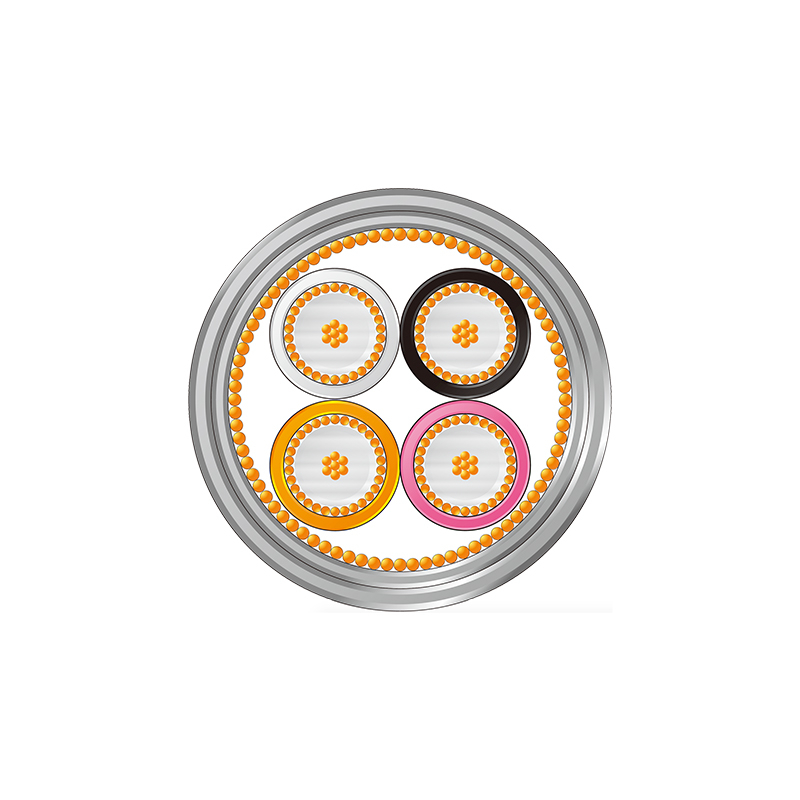

Cable Construction

Conductor :

Stranded alloy wire

Insulation :

Fluoroplastic

Shield1 :

Tinned copper alloy Jacket1 : PET tape

Shield2 :

Cu metalized polyester tape Jacket2 : PET

Shield3 :

Tinned copper Jacket3 : PET/AC


PROPERTIES

Resistant to bending、Anti-torsion

Excellent anti-EMI performance and transmission performance
