Medical flexible RF cable

TECHNICAL DATA

—Temperature Ranges

 -15℃~90℃

—Characteristic Impedance

 50±3Ω

—Dielectric Strength

 AC1000V

 1min

—Capacitance（1KHz）

 Nom.95nF/m

—Conductor Resistance（Double bridge）

 Max.300Ω/km

—Insulation Resistance

 ≥1524MΩ·km

—Rated Voltage

 30V

—Attenuation（Max）

 2db/m（2.5GHz）

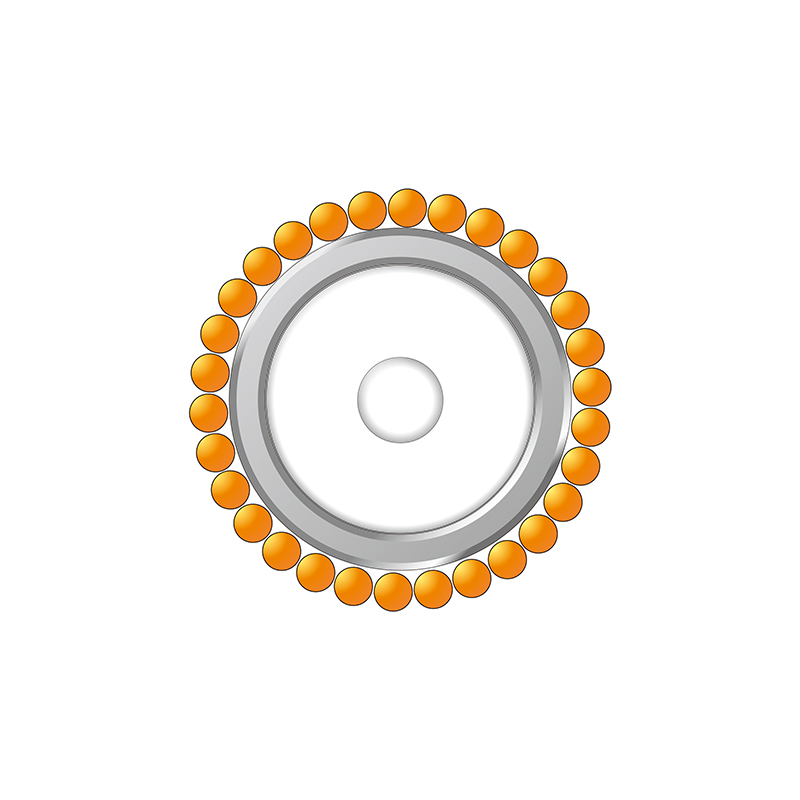

CABLE CONSTRUCTION

Conductor :

Stranded alloy wire

Insulation :

Fluoroplastic

Shield :

Al metalized polyester tape and silver-coated annealed copper

PROPERTIES

Solf and flexible, small frictional resistance, smooth and round appearance

Aergonomics, small size, light weight, high flexibility and intuitive security

Durcbility, flexbility and reliability, resistant to abrasion, sharp

strech, scrach, torsion, etc.

Sterlization requirements:suitable for TtO(ethyene oxide),

autoclaving, cold treatment, CIDEX（glutaraidehyde）soaked, IPA

(isopropyl alcohol) to clean, etc.
