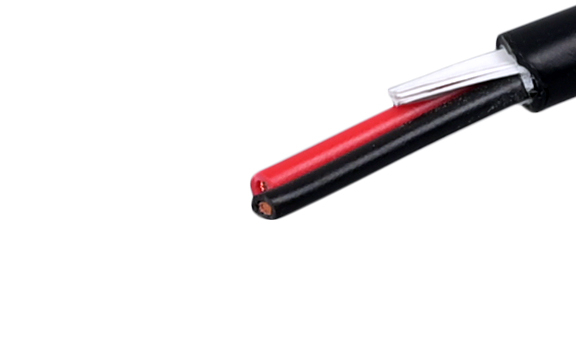

H03VV-F

This product is suitable for electrical equipment control connection. It is suitable for installation of machine tools and complete sets of equipment, laying for fixed installation or occasionally moving.
Availability:
Quantity:
H03VV-F
H03VV-F
  • H03VV-F

  • zhaolong

TECHNICAL PARAMETERS

- temperature range

-15℃ ~70℃

- Test voltage

2000/5min (AC)

— Insulation resistance (70℃)

(See the table below)

— Rated voltage

300/300V

— Minimum bending radius

Fixed installation: 6D (D= cable diameter)

Occasional movement: 15D (D = cable diameter)

- Guideline

EN50525-2-11


CABLE STRUCTURE

Conductor: fine bare copper stranded conductor, in line with IEC 60228/VDE 0295 category 5 conductor standard

Insulation: PVC

Insulation color: in accordance with EN 50525-1

Sheath: PVC

Colour: Black


FEATURES

Flame retardant meets the requirements of IEC60332-1

Has good flexibility

High quality and durable
