LONGHEAT™ MC 125 XLPO
zhaolong
TECHNICAL DATA
—Temperature Range
-20℃~105℃
—Test Voltage
2500V/5min(AC)
—Insulation Resistance(20℃)
≥20MΩ.km
—Rated voltage
300/500V
—Minimum Bending Radius
Fixed Application:
4D(D=cable diameter)
Occasional movement :
15D(D=cable diameter)

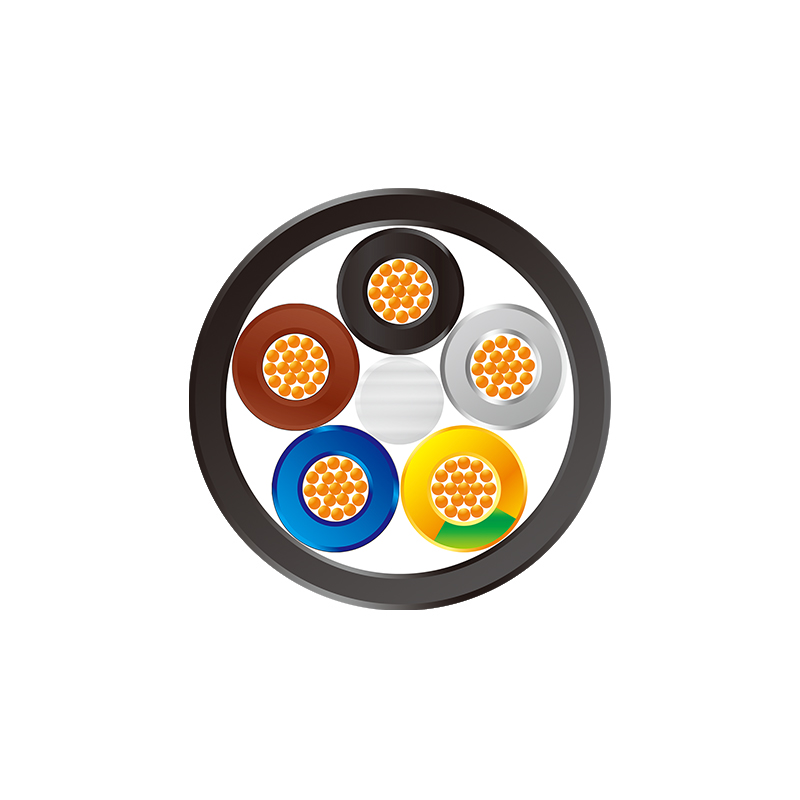

CABLE CONSTRUCTION
Conductor :
Fine stranded bare copper, according to IEC 60228/VDE 0295 class 5
Insulation :
PVC
Insulation Color :
According to DIN VDE 0293; black core wires
print with white numerical no.; yellow and green wires are optional wires
Jacket :
PVC
Color :
Black (similar to RAL 9005)
PROPERTIES
Flame resistance according to IEC60332-1
Good property of flexibility, Small bending radius
Resistant to high temperature
TECHNICAL DATA
—Temperature Range
-20℃~105℃
—Test Voltage
2500V/5min(AC)
—Insulation Resistance(20℃)
≥20MΩ.km
—Rated voltage
300/500V
—Minimum Bending Radius
Fixed Application:
4D(D=cable diameter)
Occasional movement :
15D(D=cable diameter)
CABLE CONSTRUCTION
Conductor :
Fine stranded bare copper, according to IEC 60228/VDE 0295 class 5
Insulation :
PVC
Insulation Color :
According to DIN VDE 0293; black core wires
print with white numerical no.; yellow and green wires are optional wires
Jacket :
PVC
Color :
Black (similar to RAL 9005)
PROPERTIES
Flame resistance according to IEC60332-1
Good property of flexibility, Small bending radius
Resistant to high temperature
