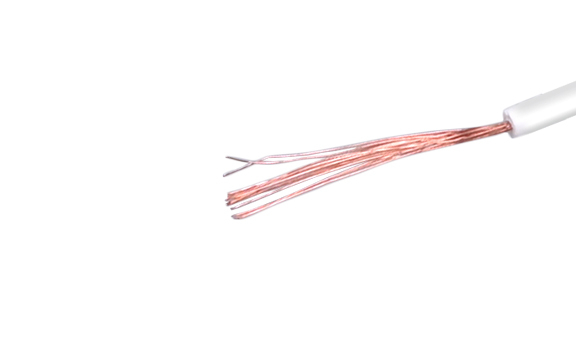

LONGHEAT™ SC 125 XLPO

Can be used as control cables in tool machines,
engine,transformer,production lines in machinery production
and in steel production.Intended for limited flexible use, and
particularly suitable for installation in high temperature.

Quantity:
  • LONGHEAT™ SC 125 XLPO
  • zhaolong

TECHNICAL DATA

—Temperature Range

 -20℃~105℃

—Test Voltage

 2500V/5min(AC)

—Insulation Resistance(20℃)

 ≥20MΩ.km

—Rated voltage

 300/500V

—Minimum Bending Radius

 Fixed Application:

 4D(D=cable diameter)

 Occasional movement :

 15D(D=cable diameter)


CABLE CONSTRUCTION

Conductor :

Fine stranded bare copper, according to IEC 60228/VDE 0295 class 5

Insulation :

PVC

Insulation Color :

According to DIN VDE 0293; black core wires

print with white numerical no.; yellow and green wires are optional wires

Jacket :

PVC

Color :

Black (similar to RAL 9005)


PROPERTIES

Flame resistance according to IEC60332-1

Good property of flexibility, Small bending radius

Resistant to high temperature
