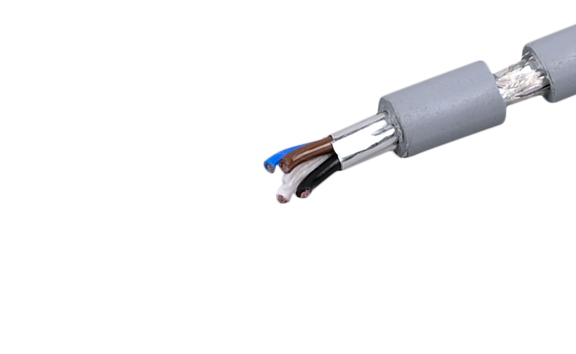

LONGTRONIC® SENSOR 306 CP

Applications
According to production requests, industrial sensor cable assist sensor to monitor processing data. It is first priorities to automatic tests and control, cable used in industrial production, environment protection, resource exploration. Suitable for fixed application and occasional movement in cases where electromagnetic interference is severe.

Quantity:
  • SENSOR 306 CP
  • zhaolong

TECHNICAL PARAMETERS

—Temperature Range

    Fixed Application : -40℃~80℃

    Occasional Movement : -5℃~80℃

—Test Voltage

    2000V/min(AC)

—Insulation Resistance( 20℃)

    ≥20MΩ.km

—Rated Voltage

    300V

—Minimum Bending Radius

    Fixed Application: 4D (D=cable diameter)

   Occasional Movement : 7.5D (D=cable diameter)

CABLE CONSTRUCTION

Conductor:

Stranded bare copper

Insulation:

PVC

Insulation Color:

    Three cores: blue, brown, black

    Four cores: blue, brown, black, white

    Five cores: blue, brown, black, white, green-yellow

Drain wire:

Tinned copper wire

Shield:

AL/Mylar screen and tinned copper braiding

Jacket:

PUR

Color:

Grey(similar to RAL 7001)


FEATURES

Flame resistance according to IEC60332-1

Good property of flexibility and small bending radius

Good performance of resistant to external EMI P

UR jacket cable is extremely resistant to oil,abrasion and hydrolysi
