LONGTRONIC® SENSOR 307

Applications
According to production requests, industrial sensor cable assist sensor to monitor processing data. It is first priorities to automatic tests and control, cable used in industrial production, environment protection, resource exploration. Suitable for fixed application and occasional movement.
Availability:
Quantity:
  • SENSOR 307

  • zhaolong

TECHNICAL PARAMETERS

—Temperature Range

    Fixed Application : -40℃~80℃

    Occasional Movement : -5℃~80℃

—Test Voltage

    2000V/min(AC)

—Insulation Resistance( 20℃)

    ≥20MΩ.km

—Rated Voltage

   300V

—Minimum Bending Radius

    Fixed Application : 4D (D=cable diameter)

    Occasional Movement : 7.5D (D=cable diameter)

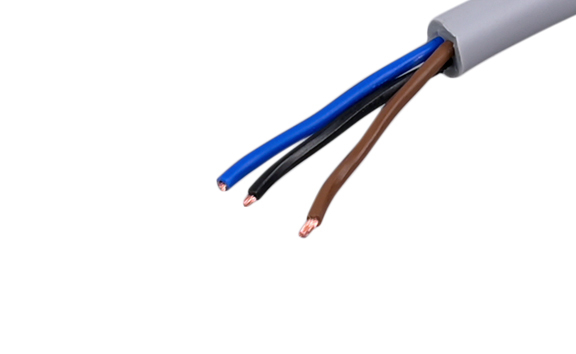

CABLE CONSTRUCTION

Conductor:

Stranded bare copper

Insulation:

XLPE

Insulation Color:

    Threecores: blue, brown, black

    Four cores: blue, brown, black, white

    Five cores: blue, brown,black, white, green-yellow

Jacket:

PVC

Color:

Grey(similar to RAL 7001)


FEATURES

Flame resistance according to IEC60332-1

Good property of flexibility

Small bending radius

XLPE insulation can reduce shrink when welding
