Servo Motor Assemblies

Can be used as connecting cables between motor and converter , or controller and motor of CNC machine tools, robots and other automation equipments. Intended for the place of high electrical interference.Very suitable for drag chain or frequent movement.
Availability:
Quantity:
Servo Motor Assemblies
  • Assemblies

  • zhaolong

TECHNICAL PARAMETERS

—Temperature Range

    Fixed Application: -40℃~105℃

    Moved Application: -5℃~105℃

—Cable Rated Voltage

    600V

—Cable Test Voltage

    core/core : 4000V/min(AC)

    core/shield : 4000V/min(AC)

—Minimum Bending Radius

    Fixed Application : 4D(D=cable diameter)

    Moved Application : 7.5D(D=cable diameter)


CABLE CONSTRUCTION

Conductor:

Ultra-fine stranded bare copper, according to IEC 60228/VDE 0295 class 6

Insulation:

PVC

InsulationColor:

According to DIN VDE 0293, black core with white numering, green-yellow conductor

Shielded:

Control pair tinned copper braiding, tinned copper overall braiding

Jacket:

PVC

Color:

Grey(similar to RAL7001)

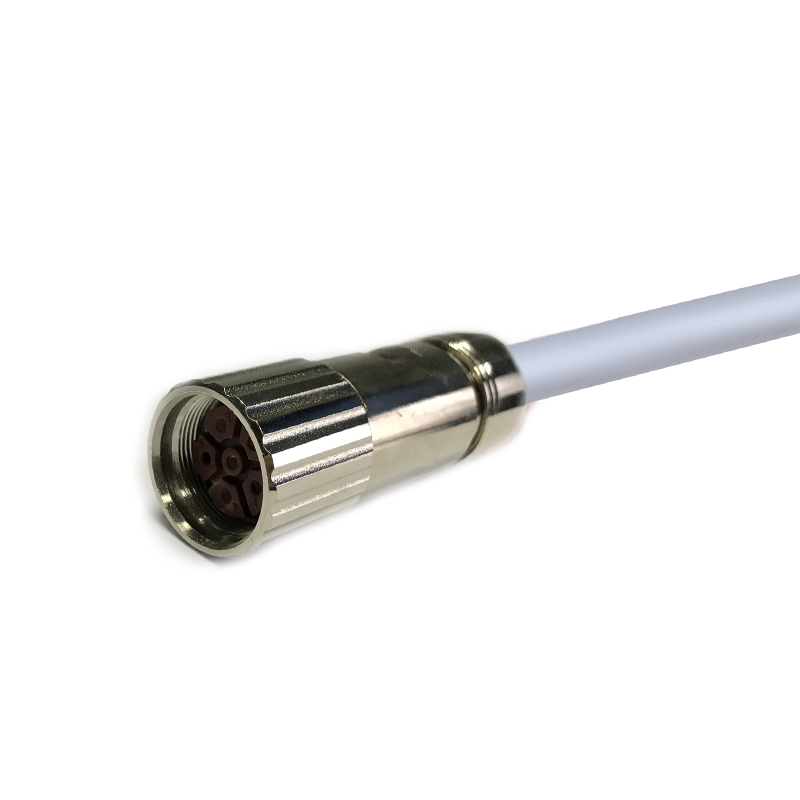

One end with M23 connectors


PROPERTIES

Cable flame resistance according to IEC60332-1

Have excellent performance of resistant to external EMI

Resistant to abrasion and oil

Long service life

High flexible use,can be used for drag chain

Provide a variety of length
