Assemblies
zhaolong
Technical Data
—Temperature Range
Fixed Application: -40℃~80℃
Moved Application: -40℃~80℃
—Cable Rated Voltage
600V
—Cable Test Voltage
core/core : 4000V/min(AC)
core/shield : 4000V/min(AC)
—Minimum Bending Radius
Fixed Application : 4D(D=cable diameter)
Moved Application : 7.5D(D=cable diameter)
CABLE CONSTRUCTION
Conductor:
Ultra-fine stranded bare copper, according to IEC 60228/VDE 0295 class 6
Insulation:
TPE
InsulationColor:
According to DIN VDE 0293, black core with white numering, green-yellow conductor is optional
Shielded:
Control pair tinned copper braiding, tinned copper overall braiding
Jacket:
PUR
Color:
Orange(similar to RAL2003)

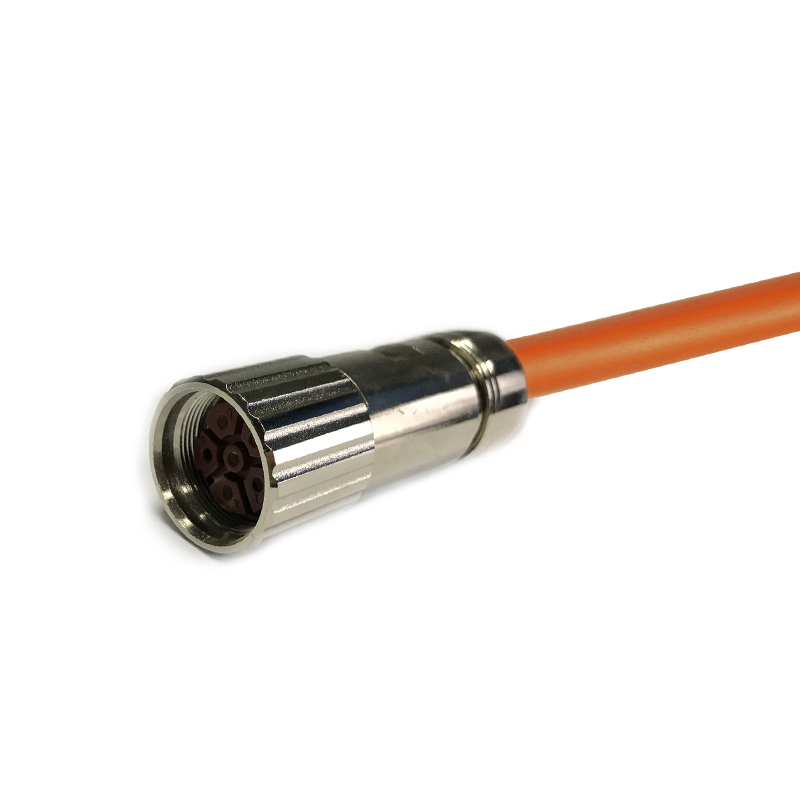

One end with M23 connectors
PROPERTIES
Cable flame resistance according to IEC60332-1
Have excellent performance of resistant to external EMI
Resistant to abrasion and oil
Long service life
High flexible use,can be used for drag chain
Provide a variety of length
Technical Data
—Temperature Range
Fixed Application: -40℃~80℃
Moved Application: -40℃~80℃
—Cable Rated Voltage
600V
—Cable Test Voltage
core/core : 4000V/min(AC)
core/shield : 4000V/min(AC)
—Minimum Bending Radius
Fixed Application : 4D(D=cable diameter)
Moved Application : 7.5D(D=cable diameter)
CABLE CONSTRUCTION
Conductor:
Ultra-fine stranded bare copper, according to IEC 60228/VDE 0295 class 6
Insulation:
TPE
InsulationColor:
According to DIN VDE 0293, black core with white numering, green-yellow conductor is optional
Shielded:
Control pair tinned copper braiding, tinned copper overall braiding
Jacket:
PUR
Color:
Orange(similar to RAL2003)
One end with M23 connectors
PROPERTIES
Cable flame resistance according to IEC60332-1
Have excellent performance of resistant to external EMI
Resistant to abrasion and oil
Long service life
High flexible use,can be used for drag chain
Provide a variety of length
