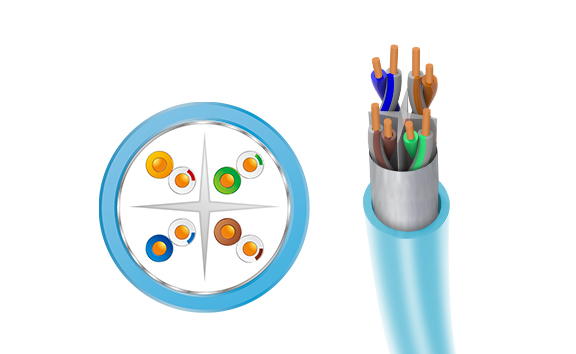

CAT6A U/UTP

The use of high-quality oxygen-free copper material to ensure excellent tensile properties and resistance properties.
The optimized design of high-speed cable pitch technology production process greatly improves crosstalk
And the transmission performance index margin such as return loss, etc., to obtain a higher transmission bandwidth.
Adopt unique cable structure process design, national patent (CN206672675U) passed 6 pack 1 external interference test.
Availability:
Quantity:
Inquire Add to Basket

CAT6A U/UTP

  • zhaolong

REFERENCE STANDARD

ISO/IEC 11801-1、ISO/IEC 11801-2、IEC 61156-5、 EN 50173-1、EN 50173-2、EN 50288-3-1、 ANSI/TIA-568.2-D、IEC 60332-1-2、IEC 60754-2、 IEC 61034-1、IEC 61034-2


PHYSICAL PARAMETERS

Conductor:

Solid bare copper 23AWG

Insulation materials:

HDPE

Insulation diameter:

1.12±0.05 mm

Sheath diameter:

7.1±0.5 mm

Sheath material:

LSZH

Working temperature:

-30 °C~ 60 °C



ELECTRICAL PARAMETERS (20°C)

Transmission delay difference:

≤45ns / 100m

Transmission speed:

69%

DC resistance:

≤ 9.38 Ω/100 m

DC resistance unbalance:

≤ 5%



Previous:
Next:
CAT6A U/UTP
