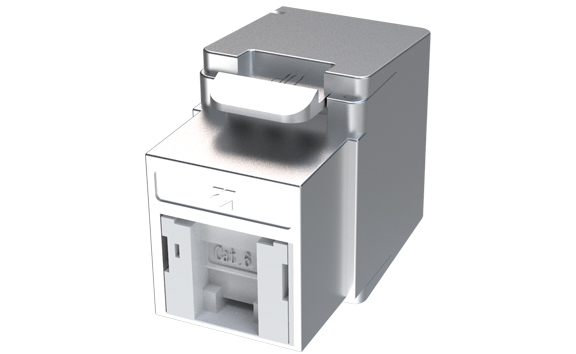

CAT6A Shielded Outlet

Support 10Gbps applications
PCB adopts optimized compensation design scheme, higher margin index
Flexible dustproof door to effectively prevent foreign objects from entering
Tool-free termination, convenient and fast
The shell is 360° fully shielded to ensure the shielding performance of the product
Uses environmentally friendly materials and meets UL, REACH, and RoHS requirements
Quantity:
  • zhaolong

MATERIAL

Plastic part:

ABS,meets theUL94V-0

Shielding shell:

stainless steel (shielding)

Module outer layer:

zinc alloy (shield)

Front contact part:

phosphor bronze,50μGold-plated

Back sideIDCClamping part:

nickel-plated phosphor bronze


PHYSICAL PARAMETERS

Plug life:

750Times

Wiring life:

200Times (unshielded) or30Times (shield),twenty twoTo 24AWGSolid conductor

Operating temperature:

-10° C to60° C

storage temperature:

-40° C to68° C

Relative humidity:

10% ~ 90%


ELECTRICAL PARAMETERS

Insulation resistance:

500mΩ

Pressure resistance:

1000VAC

DC:

1.5Amps

DC Resistance:

0.1Ω

Contact resistance:

20mΩ
