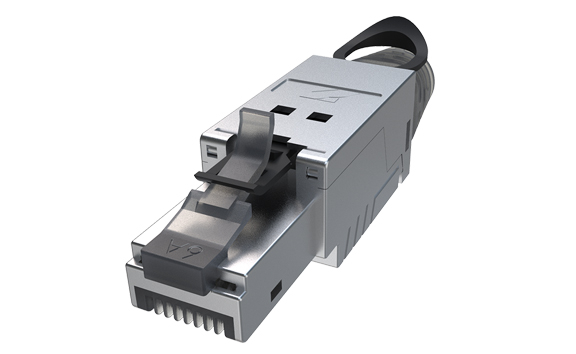

CAT6A Shielded MPTL

Support 10Gbps applications
PCB adopts optimized compensation design scheme, higher margin index
Tool-free termination, convenient and fast
The shell is 360° fully shielded to ensure the shielding performance of the product
Uses environmentally friendly materials and meets UL, REACH, and RoHS requirements
Availability:
Quantity:
CAT6A Shielded MPTL
  • zhaolong

GUIDELINE

YD / T 926.3, IEC 60603-7, ANSI / TIA-568.2-D, ISO / IEC 11801-1


MATERIAL

PIN pin phosphor bronze, 50 μ ’’ gold plated

IDC Reed Phosphor bronze, 200 μ ‘’ tinned plastic parts ABS + PC, UL 94V-0 compliant Zinc alloy, nickel plated


PHYSICAL PARAMETERS

Plug life:

≥1000 times

Wiring life:

≥250 times

Operating temperature:

-10 ° C ~ 60 ° C

Storage temperature:

-40 ° C ~ 60 ° C

Relative humidity:

10% ~ 90%


ELECTRICAL PARAMETERS

Insulation resistance:

≥ 500 MΩ

Withstand voltage:

1000 VAC

DC current:

1.5 A mps

DC resistance:

≤ 100 mΩ

Contact resistance:

≤ 20 mΩ
