From Mess to Method: The Value and Selection of Cable Management

Among the many factors ensuring data center high availability, physical cable management is foundational yet critical. In high-density environments, disorganized cables not only hinder fault identification and day-to-day operations and maintenance (O&M), but also complicate future expansion, maintenance, and airflow management.

Cable managers, as key physical accessories, deliver value by organizing cables to ensure system reliability. Their primary function is neatness and protection: guaranteeing cables (especially fibers) meet the mandatory minimum bend radius requirements of standards like China's GB 50312-2016, preventing signal degradation at the physical layer. Clear cable pathways and labeling areas​ significantly improve O&M efficiency and enable faster troubleshooting. Moreover, an orderly layout promotes proper cabinet airflow, aiding heat dissipation.

Therefore, selecting well-designed cable managers—made from reliable materials (e.g., quality aluminum alloy), with appropriate capacity (e.g., 12/24 slots), and easy installation—is essential for building a compliant and maintainable​ infrastructure.

Differentiated Management: Principles for Copper and Fiber Cabling

Effective cable management requires handling based on the physical properties of each cable type:

• Copper Cable Management: Focus on support and securement. Managers should provide adequate grip to distribute pressure, while avoiding over-tightening that can damage the jacket or alter the internal twist pair geometry, impacting performance. Sufficient space must be reserved for cable bundles.

• Fiber Cable Management: Focus on bend radius protection and physical safeguarding. Fiber is fragile and bend-sensitive. The minimum bend radius for the specific fiber type must be strictly followed. Therefore, fiber managers should use soft-rubber grommets, large-radius guides, and other protective designs.

Selection criteria include: material and structure (metal for durability/plastic for economy), capacity and density (matching patch panel ports), installation compatibility (19-inch rack), and special features/ compliance (e.g., integrated labeling, fiber-specific protection).

Addressing High-Density Challenges: Zhaolong's Cabling Management Solutions

Translating selection logic into practical, high-density solutions is key. Founded in 1993, Zhaolong Interconnect is a high-tech enterprise specializing in designing, manufacturing, and selling data cables, specialty wires, and connectivity products. We provide comprehensive solutions from standard optical/copper products to high-density integrated systems.

1. High-Density Connectivity: The Foundation for Organized Cabling

• High-Density Copper Solutions:

  Zhaolong offers copper patch panels with up to 48 ports in 1U, maximizing port density. Paired with dedicated cable managers, they provide vertical and horizontal routing channels, forming the basis for eliminating "cable chaos."

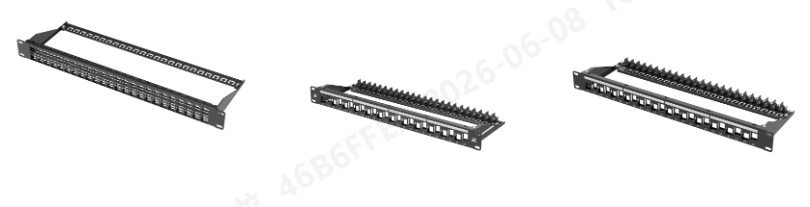

Zhaolong Blank Patch Panel

• High-Density and Hybrid Fiber Solutions:

  We offer diverse solutions for various scenarios:

  • Pull-Out Fiber Patch Panels: Feature a front-access, pull-out design for easy maintenance. They support up to 96 LC ports and include integrated routing with protective sleeves at key points to ensure compliant bend radii.

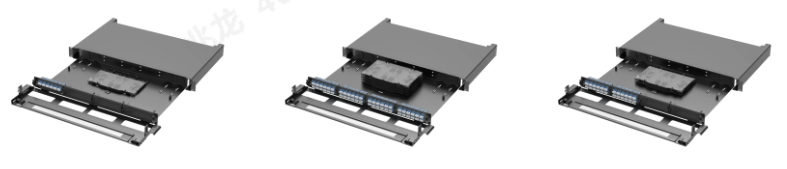

  Zhaolong Pull-Out Fiber Patch Panel

  • HG Series High-Density Fiber Patch Panels: Support 144-fiber MPO/MTP pre-terminated systems in 1U, providing a high-density, plug-and-play backbone for 40G/100G and beyond.

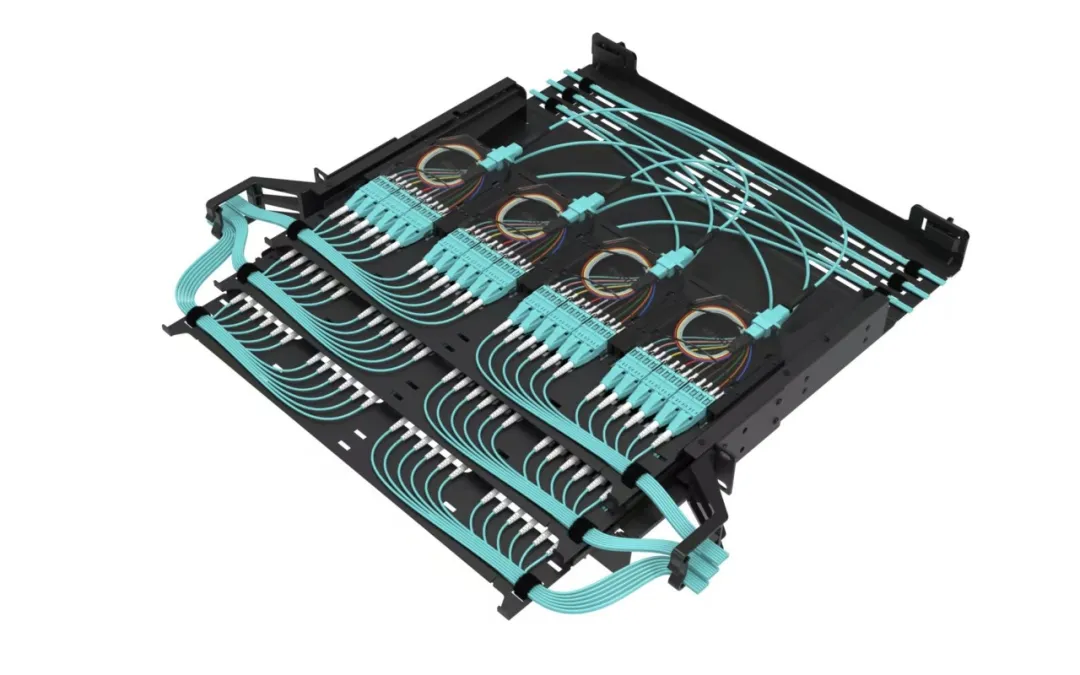

  Zhaolong HG Series MPO Patch Panel

  • Zhaolong Hybrid Fiber-Copper Patch Panel System: A flexible, modular solution. Its tool-less, front-access design simplifies installation. Available in flat and angled types, the 1U chassis (4 slots) can be flex configured with fiber or copper modules, supporting up to 96 LC cores or 24 copper ports, perfectly meeting hybrid deployment needs.

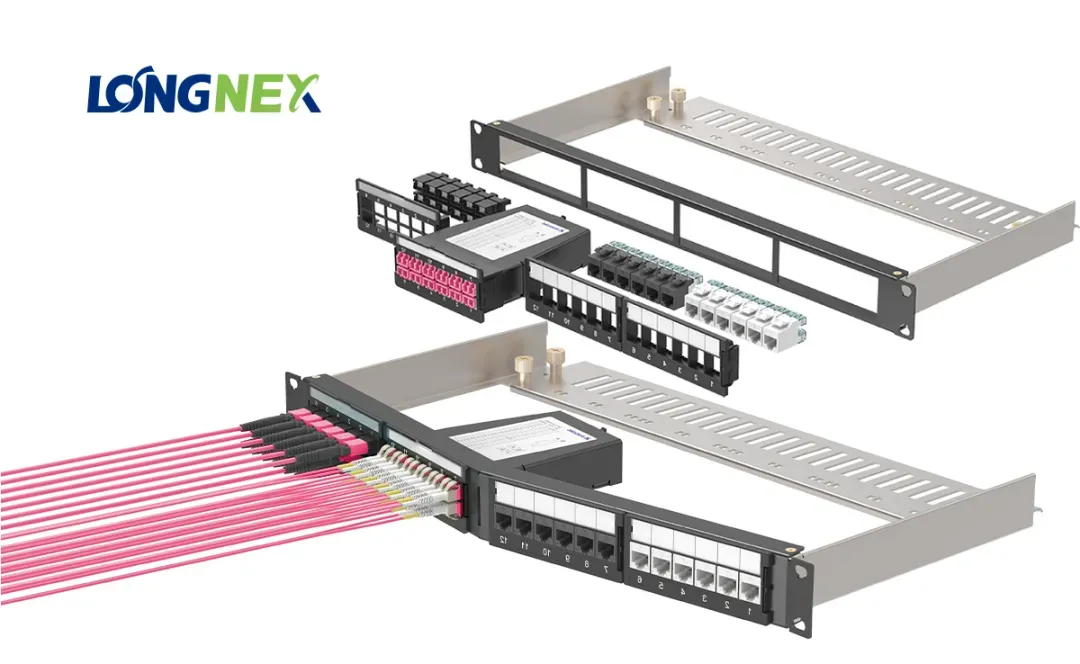

Zhaolong LONGNEX Series Hybrid Fiber-Copper Patch Panel

2. Zhaolong Cable Managers: Optimized for High-Density

Zhaolong cable managers are designed for real-world, high-density O&M:

• High-Density Optimized: Ample space and well-proportioned slots (e.g., 12/24) ensure neat routing even with fully loaded panels.

• Differentiated Handling: Secures copper cables firmly while using soft guides and grommets to protect fragile fibers and maintain bend radius.

• Robust & User-Friendly: Made from premium materials to prevent deformation; feature simple mounting for quick installation on standard 19-inch racks.

• Standardized & Reliable: Compliant with rack standards, reflecting Zhaolong's commitment to safety and reliability through physical infrastructure that ensures long-term system stability and availability.

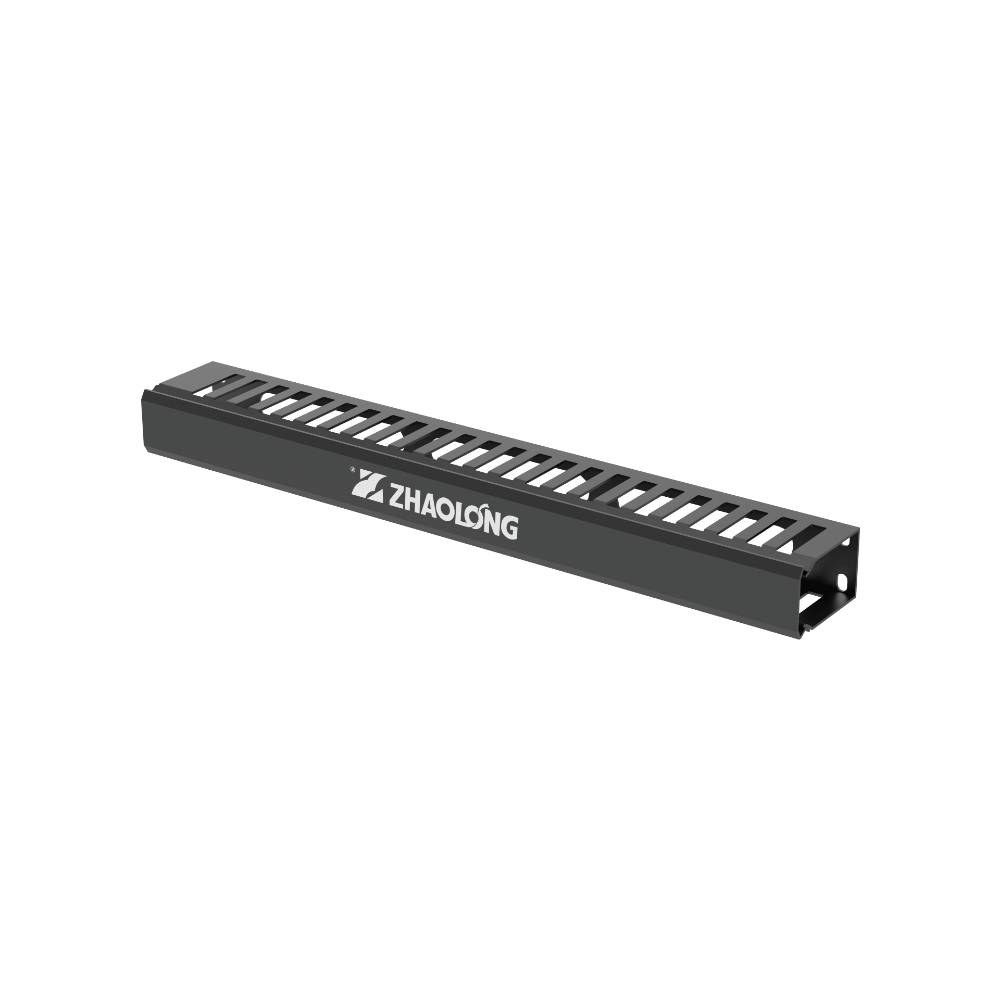

Zhaolong Cable Manager

Proven in Practice: Successful Deployments in Demanding Data Centers

The solutions above have been validated in projects with stringent reliability requirements.

To date, Zhaolong's optical and copper cabling systems have provided stable, efficient physical connectivity infrastructure for benchmark projects, including data centers for leading financial institutions and national cloud centers in Beijing, Shanghai, Tianjin, and other regions, transforming cable chaos into organized, reliable deployments.
