Guardian of Efficiency and Stability: Why Leading Automation Harness Manufacturers Choose Zhaolong EtherCAT Cable Assemblies?

Opening: Industry Trends & Challenges

With the deepening implementation of the "Manufacturing Powerhouse" strategy, achieving precision coordination of production line equipment has become a key requirement for industrial automation upgrades. Behind this lies the need for high-performance communication systems. In advanced sectors such as robotics and lithium battery production lines, traditional communication technologies — including fieldbuses like PROFIBUS and Modbus, as well as early industrial Ethernet — have become limiting factors due to issues with latency, synchronization, and efficiency.

The Zhaolong LONGTRONIC series EtherCAT cables and cable assemblies are designed specifically to address these challenges, providing stable communication support for the digital transformation of industrial automation systems.

EtherCAT: A Key Technology Driving Smart Production Line Upgrades

1. Core Principle: "Processing on the Fly" Mechanism

• Traditional Bus Mechanism (e.g., PROFIBUS): Like a mail carrier delivering letters. The mail carrier (data frame) must stop at each house (each slave node), deliver the mail (send data) and collect the reply (receive data) before proceeding to the next. As more nodes are added, total delivery time increases and efficiency drops.

• EtherCAT Mechanism: Like a high-speed train passing stations. The data frame sent by the master is like a train; each slave node is like a station. As the train passes each station (with nanosecond-level delay), the station instantly takes what it needs (reads commands addressed to it) and loads new data (inserts its status information back into the frame). The train never stops; all data exchange happens while the frame "rushes by" completing synchronously.

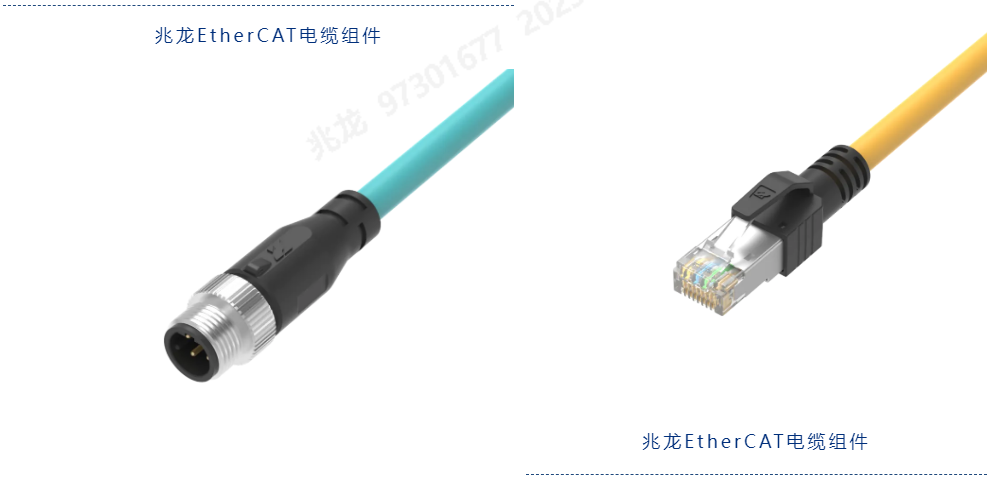

Selected Zhaolong EtherCAT Cables

This mechanism enables EtherCAT to achieve an effective data utilization rate of over 90% in cyclic process data transmission scenarios — a significant improvement over traditional industrial Ethernet (e.g., TCP/IP architecture) — while markedly reducing communication latency.

2. Application Value in Production Lines: Precision, Synchronization, Efficiency

• High-Speed Real-Time Performance, Meeting Extreme Control Requirements

It can operate with extremely short cycle times (down to 100 µs in typical high-performance cases, depending on node count and data volume), simultaneously handling cyclic process data exchanges for hundreds of I/O points and servo drives. This meets the stringent real-time control demands of high-speed packaging machines, semiconductor manufacturing equipment, and similar applications.

• High-Precision Synchronization, Ensuring Coordinated Equipment Operation

Using Distributed Clock (DC) technology, EtherCAT achieves network-wide synchronization jitter of less than 1 µs (typically in the tens of nanoseconds). This allows actuators such as robotic arms, conveyors, and welding equipment to move in highly coordinated fashion, providing core technical support for precision assembly and high-efficiency machining.

• Flexible Topology, Simplifying System Wiring Architecture

It supports linear, tree, and star topologies. In a linear topology (daisy chain), typically only one cable is needed to connect all devices; tree/star topologies can use splitters for branching connections without requiring additional switches. This design significantly reduces cabling costs and cabinet space, lowers system complexity, and eases maintenance. For cable redundancy (preventing single-point failures in critical lines), adding a second Ethernet port at the master suffices; slaves natively support redundant configuration.

Zhaolong EtherCAT Cable Assemblies

Born for Harsh Industrial Environments: Zhaolong EtherCAT Cable Assemblies

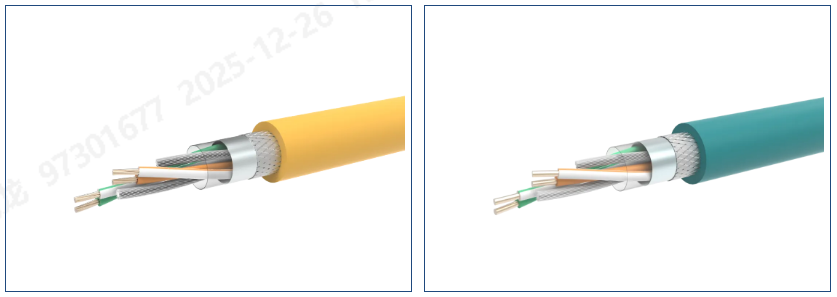

1. Outstanding Cable Performance

• Complies with CAT5e standard; transmission bandwidth up to 100 MHz; maximum transmission distance 100 m.

• Excellent flame retardancy meeting IEC 60332-1-2, UL VW-1, or FT2.

• Certified to UL and CE standards; compliant with RoHS 2.0 environmental requirements.

• High braid coverage of dual shielding ensures superior electromagnetic interference (EMI) resistance.

• Wide operating temperature range: –40 °C to 80 °C, suitable for harsh industrial environments.

• High-flex models tested for 5 million cycles in drag-chain applications. PUR jackets provide excellent oil, abrasion, and hydrolysis resistance, ensuring long-term reliability under complex conditions.

2. Reliable Connection Solutions

• RJ45 Connector: Economical molded construction maintains excellent electrical performance while controlling cost.

• M12 Connector: IP67/IP68 rated protection against dust and water ingress, ensuring stable connection in dusty or humid industrial environments.




Thanks to their comprehensive performance and reliable quality, Zhaolong EtherCAT cable assemblies have emerged as the preferred solution for many industrial automation harness manufacturers.

For detailed technical parameters, certification documents, or application case studies, please contact our technical support team for professional consultation.
