LONGTRONIC® ETHERNET PROFINET TYPE C

Applications:
This cable is designed for PROFINET and widely used in industrial Ethernet fields, such as machines, equipment, instruments and control panel. Electrical performance according to CAT5e. Very suitable for drag chain and frequent movement.
Quantity:
  • PROFINET TYPE C
  • zhaolong

TECHNICAL PARAMETERS

—Temperature Range Fixed Application:

PVC / PUR: -40°C ~ 80°C

Moved Application:

PVC: -5°C ~ 70°C    PUR: -20°C ~ 70°C

—Test Voltage 2000V / min (AC)

—Characteristic Impedance 100±15Ω

—Conductor DCR (20℃)  ≤60Ω/ km

—Minimum Bending Radius     Fixed Application:

8D (D = cable diameter)

Moved Application:

15D (D = cable diameter)

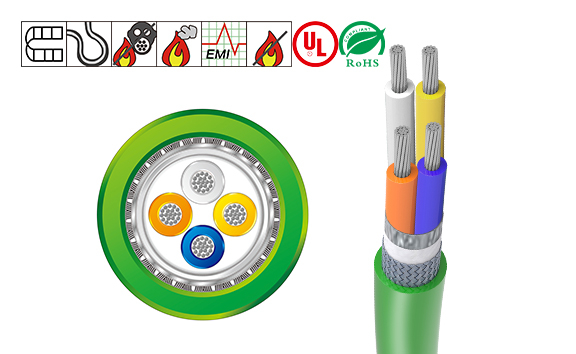

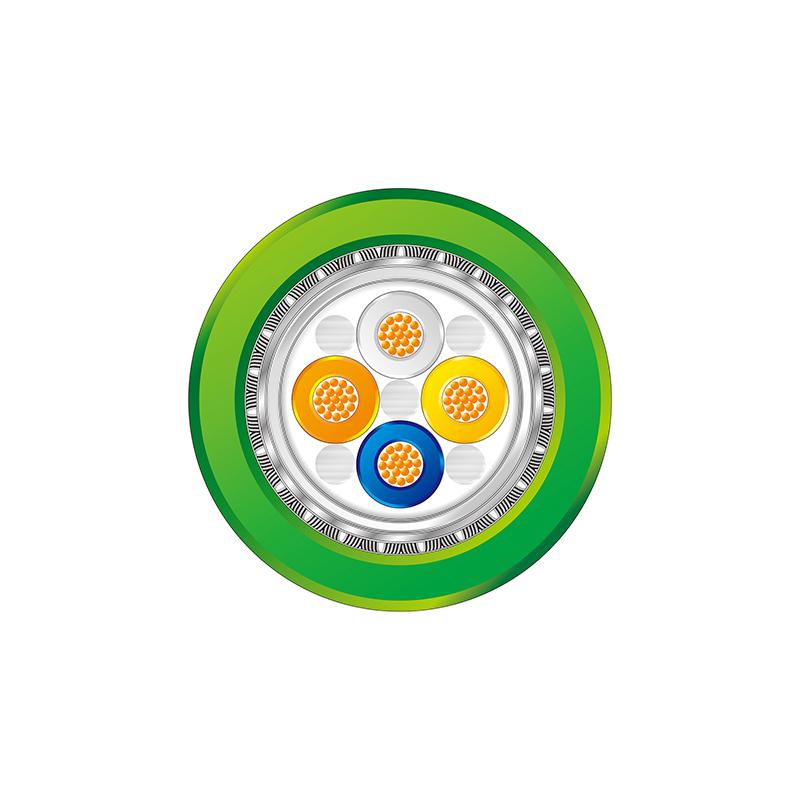

CABLE CONSTRUCTION

Conductor:

Stranded tinned copper wire

Insulation:

PE

Color:

White, Yellow, Blue, Orange

Inner jacket:

PVC

FRNC

Shielded:

AL / Mylar wrapped and tinned copper braiding

Outer Jacket:

PVC

PUR

Color:

Green (similar to RAL 6018)


FEATURES

Flame resistance according to IEC60332-1

Have good performance of resistance to external EMI

Excellent transmission performance

Good property of flexibility

PUR jacket cable is extremely resistant to oil, abrasion and hydrolysis
