LONGTRONIC® ETHERNET EtherCAT

Applications
This cable is widely used in industrial Ethernet fields, such as machines, equipment, instruments and control panel. Electrical performance according to CAT5e. Be used in EtherCAT and suitable for fixed application or occasional movement.
Quantity:
  • EtherCAT
  • zhaolong

TECHNICAL PARAMETERS

—Temperature Range Fixed Application:

PVC / LSZH / PUR: -40°C ~ 80°C

Occasional Movement:

PUR: -20°C ~ 70°C PVC / LSZH: -5°C ~ 70°C

—Test Voltage 2000V / min (AC)

—Characteristic Impedance 100±15Ω

—Conductor DCR (20℃)  ≤60Ω/ km

—Minimum Bending Radius    Fixed Application: 8D (D = cable diameter)     Occasional Movement: 15D (D = cable diameter)

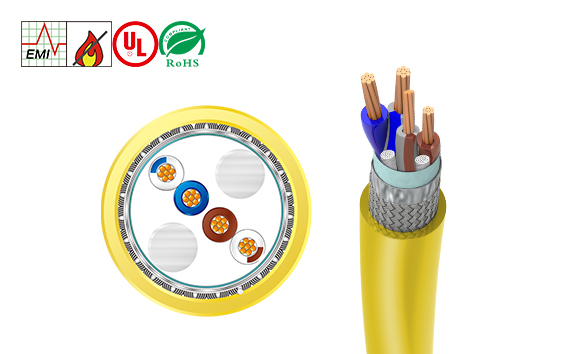

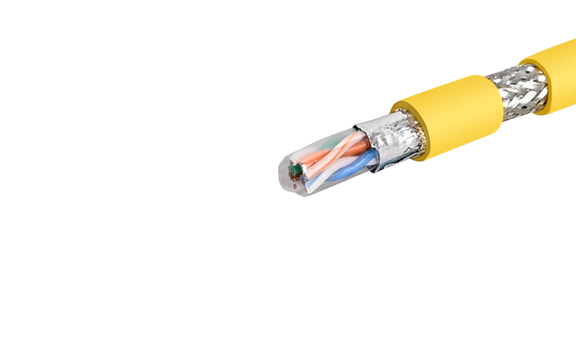

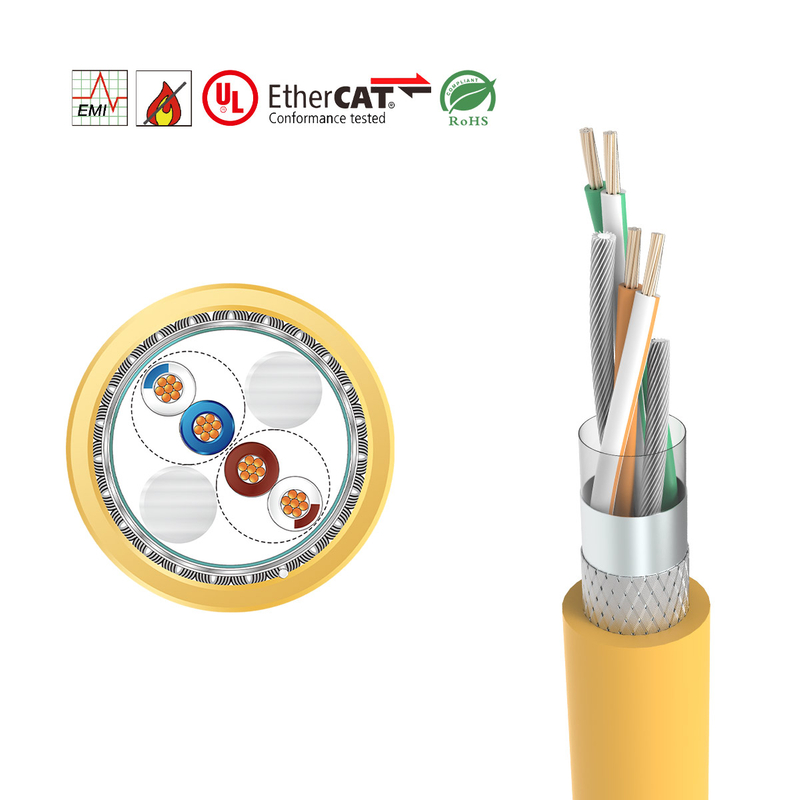

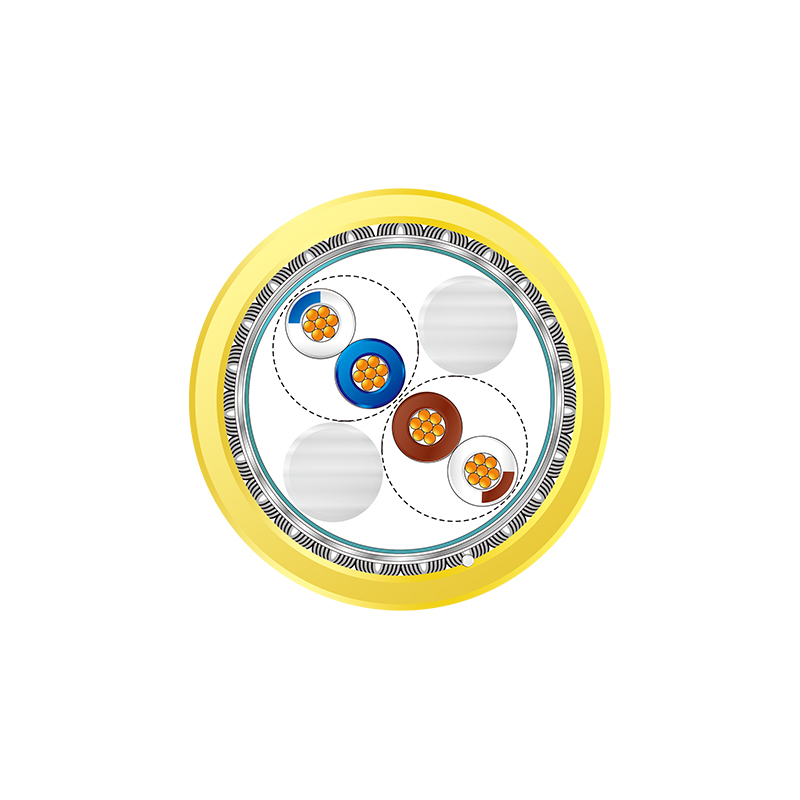

CABLE CONSTRUCTION

Conductor:

Stranded copper wire

Insulation:

PE

Shield:

AL / Mylar wrapped and tinned copper braiding

Jacket:

PVC

LSZH

PUR

Color:

Yellow


FEATURES

Flame resistance according to IEC60332-1

Have good performance of resistant to external EMI

Halogen free,ow smoke for LSZH jacket cable

Excellent transmission performance

PUR jacket cable is extremely resistant to oil,abrasion and hydrolysis
