CHARACTERISTIC
Cable flame retardancy meets iec60332-1-2
Wire to aluminum foil shielding and tinned copper braiding
Excellent anti external electromagnetic interference ability
The signal transmission frequency can reach 250MHz

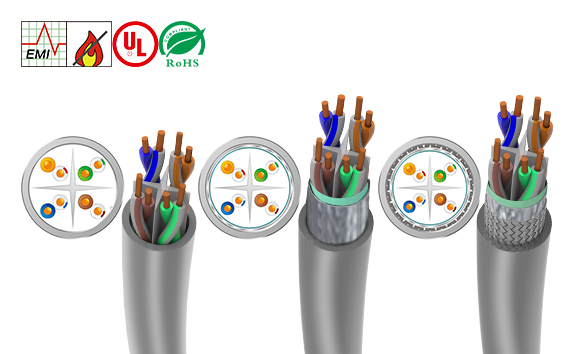

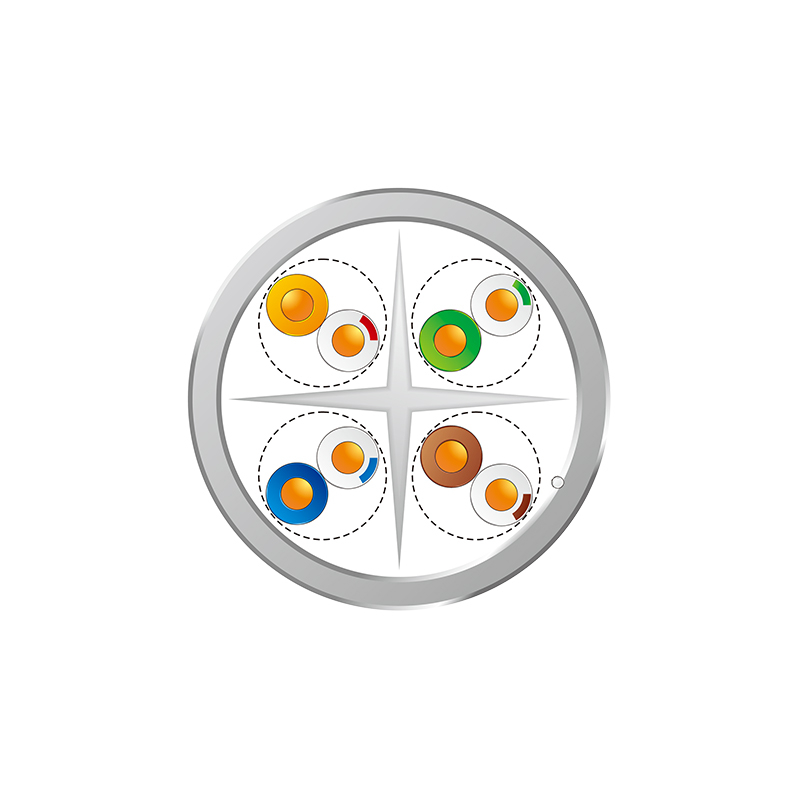

CABLE STRUCTURE
Conductor: solid bare copper conductor
Insulation: PE

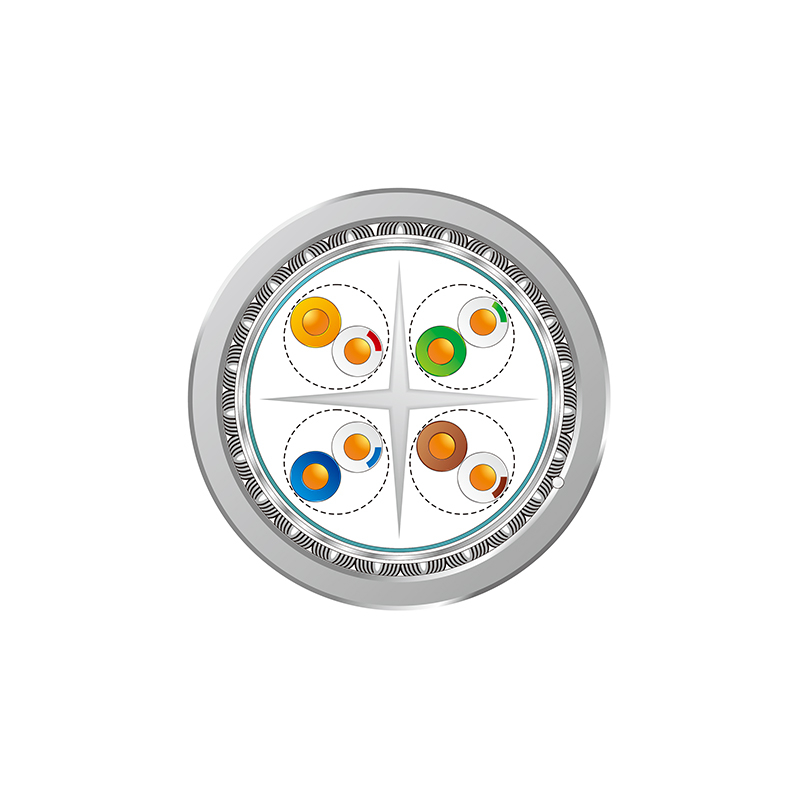

Shield: SF / UTP: aluminum foil shield plus tinned copper braid
Sheath: PVC / LSZH
Color: gray
TECHNICAL PARAMETER
Temperature range: - 40 ℃ ~ 80 ℃
Test voltage: 1000V / min (DC)
Characteristic impedance: 100 ± 15 Ω
Insulation resistance: ≥ 5g Ω. Km
Minimum bending radius
Fixed application: 8D (d = cable diameter)
Reference standard
IEC61156-5, ANSI/TIA-568-C.2、EN50173&ISO/IEC11801
