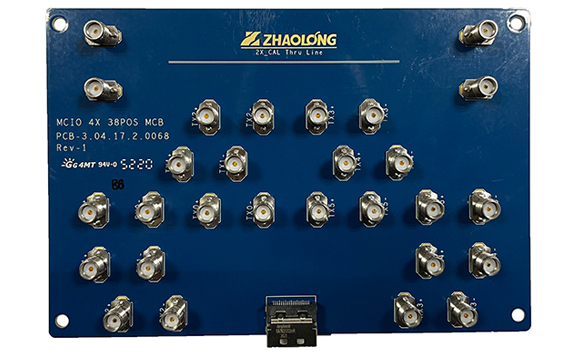

MCIO 4X Test Fixture
MCIO 4X Test Fixture
Share to:

MCIO 4X Test Fixture

SFF-TA-1016 Compliance Test Board Specification

Quantity:
Inquire Add to Basket

  • MCIO
  • zhaolong

SPECIFICATION

Connector : MCIO 4X R/A Connector

Impedance : 85Ω
Compliant to ,PCIe 4.0 /5.0, Test Fixture Specifications.
Calibration Traces (2x)
Enables accurate de-embedding of test fixture trace loss


MCIO
