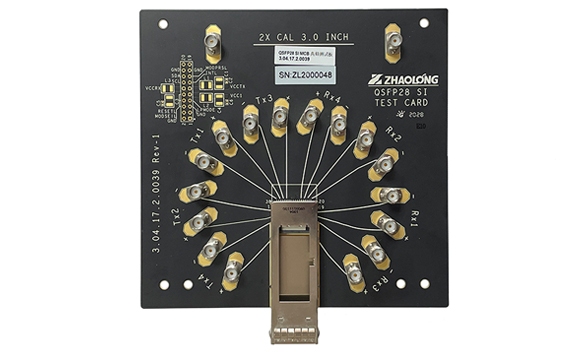

QSFP28 MCB

QSFP28 MODULE COMPLIANCE BOARD.
CAUI-4 MODULE COMPLIANCE BOARD.
Compliant to IEEE802.3bj ,IEEE802.3cd ,IEEE 802.3bm, IEEE802.3bs, test fixture specifications.
Availability:
Quantity:
Inquire Add to Basket

QSFP28 MCB

  • QSFP28

  • zhaolong

SPECIFICATION
Impedance : 100Ω
Requires +5V (+/-10%) unregulated external voltage Facilitates power sourcing to DUT
Built-In +3.3V linear voltage regulator Generates local clean voltage sourcing to DUT
Calibration Traces (2x)
Enables accurate de-embedding of test fixture trace loss
