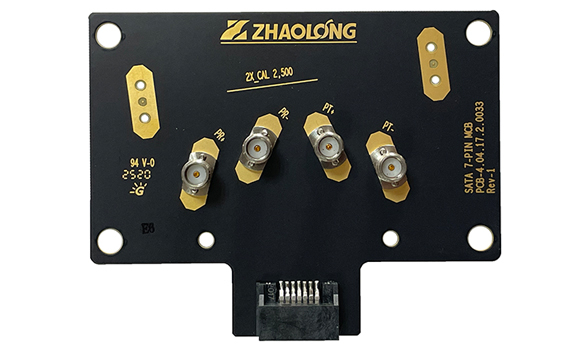

SATA(7Pin) SI Test Fixture

Compliant to SAS3.0 ,SATA3.0, test fixture specifications.
Availability:
Quantity:
Inquire Add to Basket

  • SATA(7Pin) SI Test Fixture

  • zhaolong

SPECIFICATION
Impedance : 100Ω
Calibration Traces (2x)
Enables accurate de-embedding of test fixture trace loss
