Mini SAS 36pos-LSE

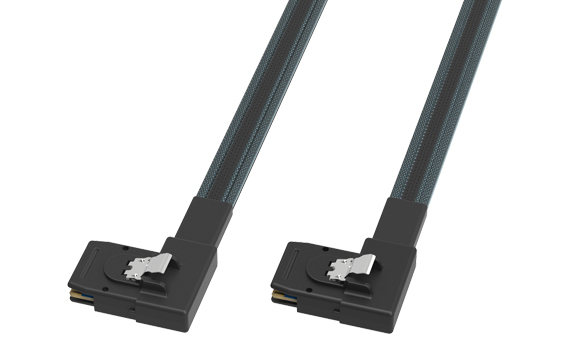

Product Description: Mini SAS 36pos Left Side Exit Plug
Series: Internal Mini SAS
Cable Length: 1.0 Meter
Signal Wire Size: 30AWG
Lock to mating part: With Latch
Plating: Au 30u" min on contact area
Connector Color:Black
Environmental Compliance: RoHS
Flammability: PCB UL94V-0, thermoplastic resin UL94V-0
Availability:
Quantity:
  • Mini SAS 36pos-LSE
  • zhaolong

APPLCATION / MARKET

Switch, Router, Servers
Storage, RAID Systems
External Storage Data Systems
SAS/SATA/PCIe HBA Interfaces
Direct Attached Storage (DAS)


FEATURES AND BENEFITS
1. Compliance with SFF-8086/ 8087 standard
2. Small size design: pitch 0.8mm
3. 36pos and 68 pos  connector type, and support straight, right angle and side exit
4. Design for SATA  & SAS Applcation


MECHANICAL PERFORMANCE
1. Mating force:  55.5N maximum
2. Unmating force: 49N maximum
3. Rated durability cycles: 250 cycles minimum


ELECTRICAL PERFORMANCE
1. Voltage: 30VAC per contact
2. Current: 0.5 A per contact
3. Dielectric Withstanding Voltage: 300 VDC minimum for 100 ms
4. Insulation Resistance: 10 MΩ minimum between adjacent pins


SIGNAL INTEGRITY
1. SAS 3.0 12Gbps
2. SATA 3.1 6Gbps

PRODUCT ENVIRONMENTAL COMPLIANCE
1. RoHS2.0: Compliant
2. China RoHS: Yes
3. REACH SVHC: Yes
4. Low-Halogen Status: Not Reviewed
