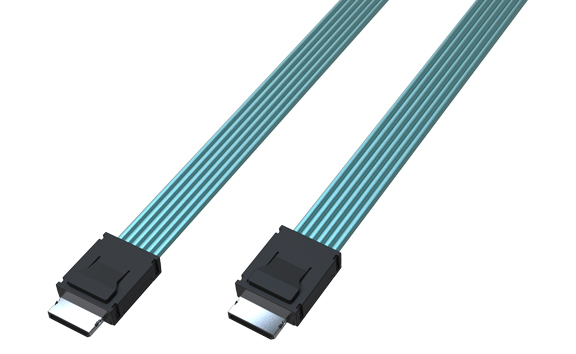

OcuLink 4X Active Latch Straight
zhaolong
APPLCATION / MARKET
1. Data center & Networking Equipment
2. Servers/Storage Devices
3.SAS/SATA/PCIe HBA Interfaces
4. Switches/Routers
5. Wireless Base Stations and Radios
FEATURES AND BENEFITS
1. Complince with SFF-8611 standard
2. Small size design: pitch 0.6mm
3. 4x 41Pin connector type, and support straight, right angle and side exit
4. 85 ohm impedance design for PCIe application
5. 30-34AWG are available for both discrete and ribbon cable
MECHANICAL PERFORMANCE
1. Mating Force : (4x)~25N Max
2.Un-Mating Force* : (4x)~25N Max
3. Rated durability cycles: 250 cycles MIN.
*Un-mating force must be less than mating force.
ELECTRICAL PERFORMANCE
1. Voltage: 30VAC per contact
2. Current: 0.5A per contact
3. Dielectric Withstanding Voltage: 300 VDC minimum for 100 ms
4. Insulation Resistance: 10 MΩ minimum between adjacent pins
SIGNAL INTEGRITY
1. PCIe Gen 3.0 & 4.0 Compliant
PRODUCT ENVIRONMENTAL COMPLIANCE
1. RoHS2.0: Compliant
2. China RoHS: Yes
3. REACH SVHC: Yes
4. Low-Halogen Status: Not Reviewed
APPLCATION / MARKET
1. Data center & Networking Equipment
2. Servers/Storage Devices
3.SAS/SATA/PCIe HBA Interfaces
4. Switches/Routers
5. Wireless Base Stations and Radios
FEATURES AND BENEFITS
1. Complince with SFF-8611 standard
2. Small size design: pitch 0.6mm
3. 4x 41Pin connector type, and support straight, right angle and side exit
4. 85 ohm impedance design for PCIe application
5. 30-34AWG are available for both discrete and ribbon cable
MECHANICAL PERFORMANCE
1. Mating Force : (4x)~25N Max
2.Un-Mating Force* : (4x)~25N Max
3. Rated durability cycles: 250 cycles MIN.
*Un-mating force must be less than mating force.
ELECTRICAL PERFORMANCE
1. Voltage: 30VAC per contact
2. Current: 0.5A per contact
3. Dielectric Withstanding Voltage: 300 VDC minimum for 100 ms
4. Insulation Resistance: 10 MΩ minimum between adjacent pins
SIGNAL INTEGRITY
1. PCIe Gen 3.0 & 4.0 Compliant
PRODUCT ENVIRONMENTAL COMPLIANCE
1. RoHS2.0: Compliant
2. China RoHS: Yes
3. REACH SVHC: Yes
4. Low-Halogen Status: Not Reviewed
