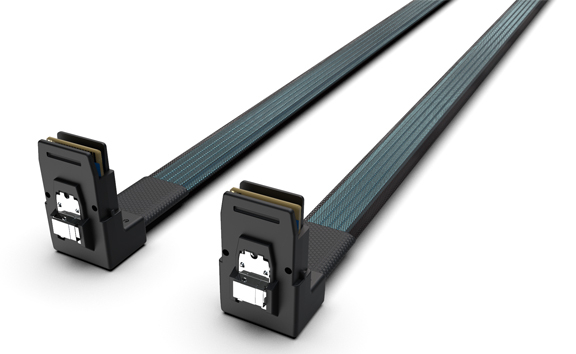

Mini SAS 36pos-R/A
zhaolong
APPLCATION / MARKET
Switch, Router, Servers
Storage, RAID Systems
External Storage Data Systems
SAS/SATA/PCIe HBA Interfaces
Direct Attached Storage (DAS)
FEATURES AND BENEFITS
1. Compliance with SFF-8086/ 8087 standard
2. Small size design: pitch 0.8mm
3. 36pos and 68 pos connector type, and support straight, right angle and side exit
4. Design for SATA & SAS Applcation
MECHANICAL PERFORMANCE
1. Mating force: 55.5N maximum
2. Unmating force: 49N maximum
3. Rated durability cycles: 250 cycles minimum
ELECTRICAL PERFORMANCE
1. Voltage: 30VAC per contact
2. Current: 0.5 A per contact
3. Dielectric Withstanding Voltage: 300 VDC minimum for 100 ms
4. Insulation Resistance: 10 MΩ minimum between adjacent pins
SIGNAL INTEGRITY
1. SAS 3.0 12Gbps
2. SATA 3.1 6Gbps
PRODUCT ENVIRONMENTAL COMPLIANCE
1. RoHS2.0: Compliant
2. China RoHS: Yes
3. REACH SVHC: Yes
4. Low-Halogen Status: Not Reviewed
APPLCATION / MARKET
Switch, Router, Servers
Storage, RAID Systems
External Storage Data Systems
SAS/SATA/PCIe HBA Interfaces
Direct Attached Storage (DAS)
FEATURES AND BENEFITS
1. Compliance with SFF-8086/ 8087 standard
2. Small size design: pitch 0.8mm
3. 36pos and 68 pos connector type, and support straight, right angle and side exit
4. Design for SATA & SAS Applcation
MECHANICAL PERFORMANCE
1. Mating force: 55.5N maximum
2. Unmating force: 49N maximum
3. Rated durability cycles: 250 cycles minimum
ELECTRICAL PERFORMANCE
1. Voltage: 30VAC per contact
2. Current: 0.5 A per contact
3. Dielectric Withstanding Voltage: 300 VDC minimum for 100 ms
4. Insulation Resistance: 10 MΩ minimum between adjacent pins
SIGNAL INTEGRITY
1. SAS 3.0 12Gbps
2. SATA 3.1 6Gbps
PRODUCT ENVIRONMENTAL COMPLIANCE
1. RoHS2.0: Compliant
2. China RoHS: Yes
3. REACH SVHC: Yes
4. Low-Halogen Status: Not Reviewed
