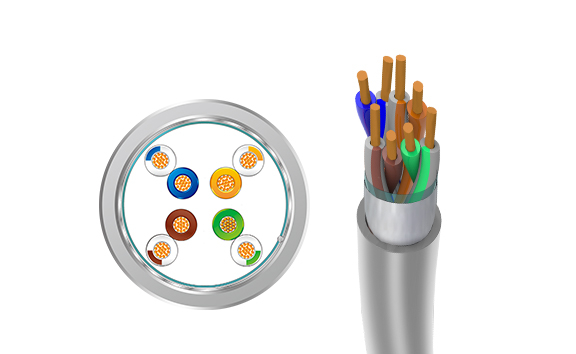

Shield CAT5e

The use of high-quality oxygen-free copper material to ensure excellent tensile properties and resistance performance; optimized design of high-speed cable pitch technology, high-speed cable production process. Passed the authority of third-party testing institutions
Products fully comply with REACH and RoHS requirements

Quantity:
  • zhaolong

REFERENCE STANDARD

GB/T 18015、ISO/IEC 11801、IEC 61156-5、EN 50173-1、 EN 50173-2、EN 50288-3-1、TIA-568-2.D、IEC 60332-1-1、 IEC 60332-1-2、IEC 60754-2、IEC 61034-1、IEC 61034-2、 UL444、UL1581、UL1666


PHYSICAL PARAMETERS

Conductor:

Solid bare copper 23AWG

Insulation materials:

HDPE

Insulation diameter:

1.00±0.05 mm

Shield:

Aluminum foil (total shielding)

Sheath diameter:

6.2±0.4 mm(F/UTP)

Sheath material:

PVC or PE

Working temperature:

-30 °C~ 60 °C(PE)

-20 °C~ 60 °C(PVC)


ELECTRICAL PARAMETERS (20°C)

Transmission delay difference:

≤45ns / 100m

Transmission speed:

69%

Capacitance:

≤ 5.6 nf/100 m

DC resistance:

≤ 9.5 Ω/100 m

DC resistance unbalance:

≤ 5%

Unbalanced capacitance to ground:

≤ 330 pf/100 m
