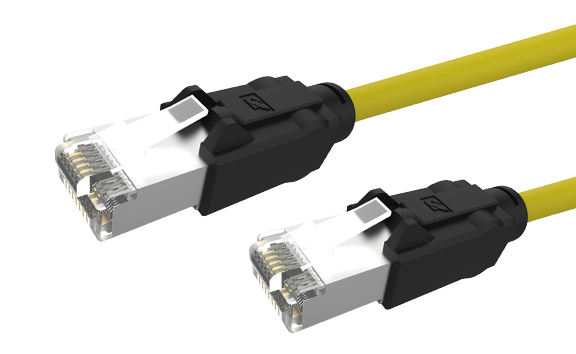

Ethernet Cable Assemblies CAT6A RJ45-RJ45

CAT6A patchcord is suitable for use in automation technology and industrial applications,external interconnection of electronic equipment,can be used in the system of EtherCAT, EtherNet/IP and CC-link IE. Suitable for flexible use and indoor installation.
Availability:
Quantity:
  • CAT6A RJ45-RJ45

  • zhaolong

TECHNICAL PARAMETERS

—Temperature Range

    Fixed Application :

         PVC : -20℃~70℃

         LSZH/PUR: -40℃~80℃

    During the Installation :

         PVC/LSZH : -5℃~60℃

         PUR: -20℃~80℃

—Characteristic Impedance

    100±15Ω

—Protection Classification

    IP20

—Minimum Bending Radius

    Fixed Application : 8D(D=cable diameter)

    Occasional Movement : 15D(D=cable diameter)

—Reference Standard

    ANSI/TIA-568-C.2 , ISO/IEC11801


CABLE CONSTRUCTION

Conductor:

Stranded copper wire

Insulation:

Foamed PE

Shielded:

AL/Mylar individual screen and tinned copper wire braid

Jacket:

PVC

LSZH

PUR

Color:

Yellow


Patchcord with both ends of shielded RJ45 connectors


PROPERTIES

Cable flame resistance according to IEC60332-1

Have excellent performance of resistant to external EMI

Long service life

Flexible use, can change equipments easily

Provide a variety of length and sheath

Good performance of CAT6
