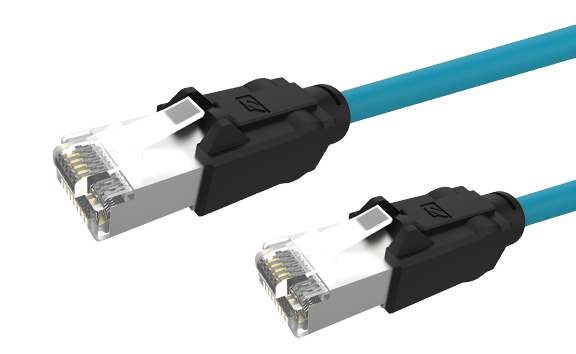

Ethernet Cable Assemblies FD CAT5e RJ45-RJ45

CAT5e patchcord is suitable for use in automation technology and industrial applications,external interconnection of electronic equipment,can be used in the system of EtherCAT, EtherNet/IP and CC-link IE.Suitable for drag chain and frequent movement.
Availability:
Quantity:
  • CAT5e RJ45-RJ45

  • zhaolong

TECHNICAL PARAMETERS

—Temperature Range

    Fixed Application :

         PVC/PUR: -40℃~80℃

    Mobile Application :

         PVC : -5℃~70℃

         PUR : -20℃~80℃

—Characteristic Impedance

    100±15Ω

—Protection Classification

    IP20

—Minimum Bending Radius

    Fixed application : 5D(D=cable diameter)

    Mobile Application : 10D(D=cable diameter)

—Application of drag chain

     ≥10 million times

—Reference Standard

    ANSI/TIA-568-C.2 , ISO/IEC11801


CABLE CONSTRUCTION

Conductor:

Flexible ultra-fine stranded copper wire, according to IEC 60228/VDE 0295 class 6

Insulation:

PE

Shielded:

Tinned copper braiding

Jacket:

PVC

PUR

Color:

Black


Patchcord with both ends of shielded RJ45 connectors


PROPERTIES

Cable flame resistance according to IEC60332-1

Have excellent performance of resistant to external EMI

Long service life

Flexible use,can change equipments easily

Provide a variety of length and sheath

Good performance of CAT5e
