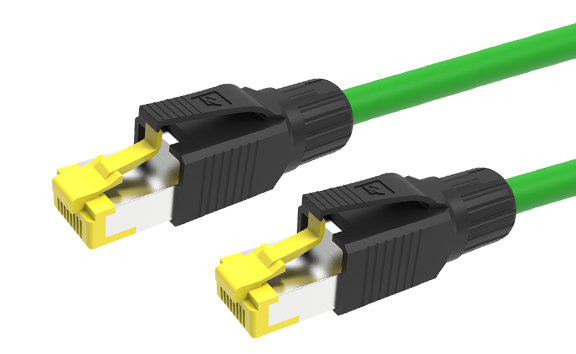

PROFINET TYPE C Assemblies RJ45-RJ45

This patchcord is designed for PROFINET and widely used in industrial Ethernet.It can make two electronic equipments and two instruments directly connected .Especially suitable for drag chain and indoor installation.
Availability:
Quantity:
PROFINET TYPE C Assemblies RJ45-RJ45
PROFINET TYPE C Assemblies RJ45-RJ45
  • RJ45-RJ45

  • zhaolong

TECHNICAL PARAMETERS

—Temperature Range

    Fixed Application :

         PVC : -40℃~80℃

         PUR : -40℃~80℃

    Mobile Application :

         PVC : -5℃~70℃

         PUR : -20℃~80℃

—Characteristic Impedance

    100±15Ω

—Protection Classification

    IP67

—Coding

    D

—Minimum Bending Radius

    Fixed Application : 8D(D=cable diameter)

   Mobile Application : 15D(D=cable diameter)

—Application of drag chain

    ≥2.5 million times


CABLE CONSTRUCTION

Conductor:

Stranded tinned copper wire

Insulation:

PE

Shielded:

AL/Mylar screen and tinned copper wire braid

Jacket:

PVC

FRNC

Color:

Green(similar to RAL6018)


Patchcord with both ends of shielded RJ45 connectors


PROPERTIES

Cable flame resistance according to IEC60332-1

Have excellent performance of resistant to external EMI

Resistant to abrasion and oil, especially for PUR

Long service life

Flexible use, can change equipments easily

Provide a variety of length and sheath

Good performance of CAT5e
