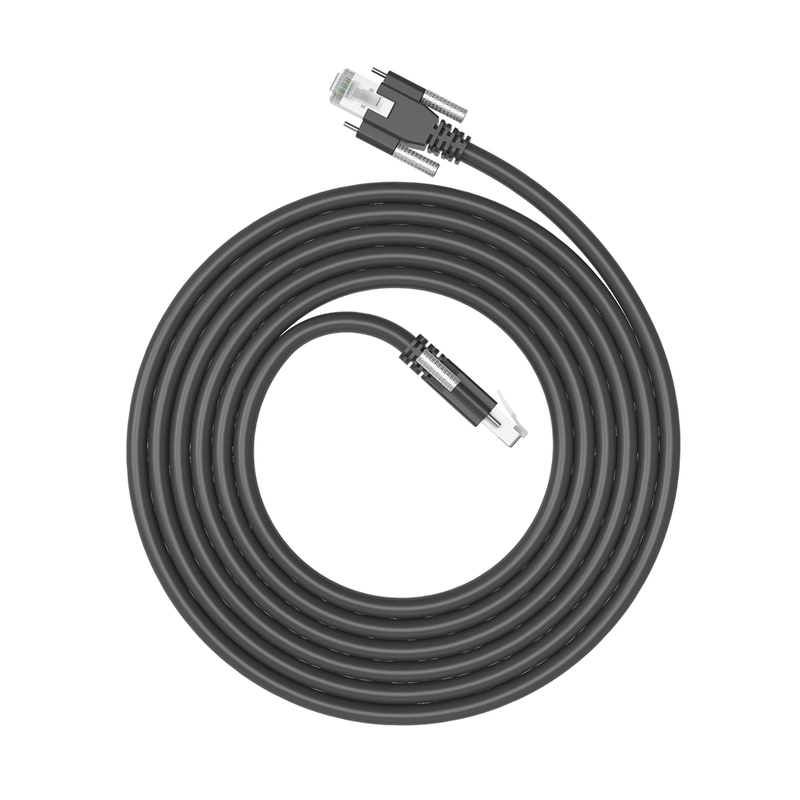

10Gigabit Ethernet

Designed for machine vision systems/industrial cameras, supports 10Gigabit Ethernet, and can be applied to 10G networks. 3D motion highly flexible design, especially suitable for data transmission on the robot arm.
Availability:
Quantity:
  • 10Gigabit Ethernet CAT6A

  • zhaolong

PRODUCT STRUCTURE

Conductor: Highly flexible stranded copper conductor, highly flexible stranded copper conductor insulation

Insulation: special PE

Shielding: high coverage tinned copper braid

Sheath: Highly flexible and oil-resistant PUR

color: blue

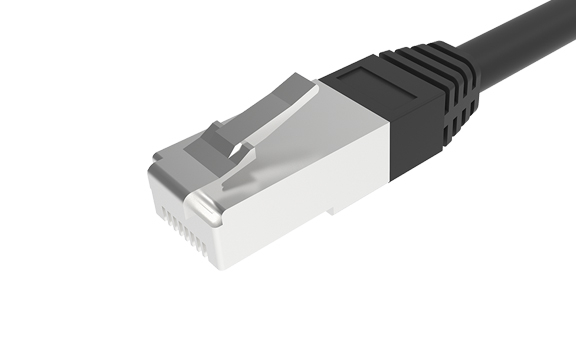

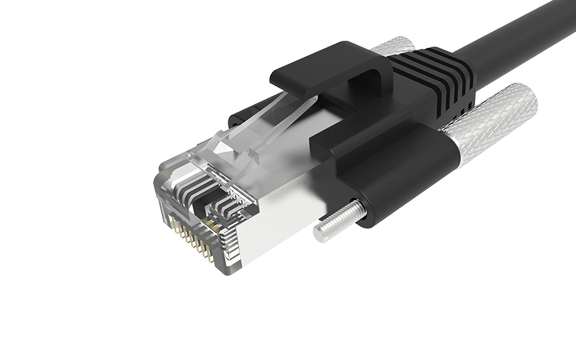

One end all-metal RJ45 connector, one end all-metal M12Xcode


FEATURES

Excellent CAT6A performance, supporting 10 Gigabit network applications

Each pair of core wires has a braided shield with ultra-high coverage rate, which has excellent resistance to external electromagnetic interference, and ensures the reliability and integrity of the signal

It can be used for more than 5 million cycles under the minimum bending radius of 50mm, which is durable and reduces maintenance, downtime and total costs during the equipment life cycle.

All-metal field termination connector, flexible length, high reliability

M12 end IP67 waterproof and dustproof

Particularly resistant to oil, acid and alkali, very suitable for the harsh environment of the factory


TECHNICAL PARAMETERS

—Temperature range:

fixed installation: -40℃~80℃

Mobile installation: -5℃~80℃

—Characteristic impedance: 100±15Ω

—Protection level:

RJ45:IP20

M12:IP67

—Minimum bending radius:

fixed installation: 5D (D=cable diameter)

Mobile installation: 10D (D=cable diameter)

—Reversing application:

≥ 5 million times

—Reference standard:

performance conforms to ANSI/TIA-568-C.2
