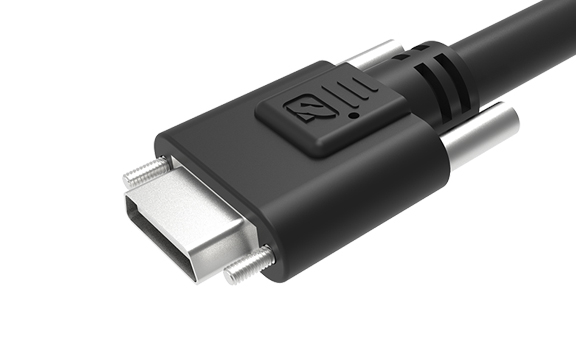

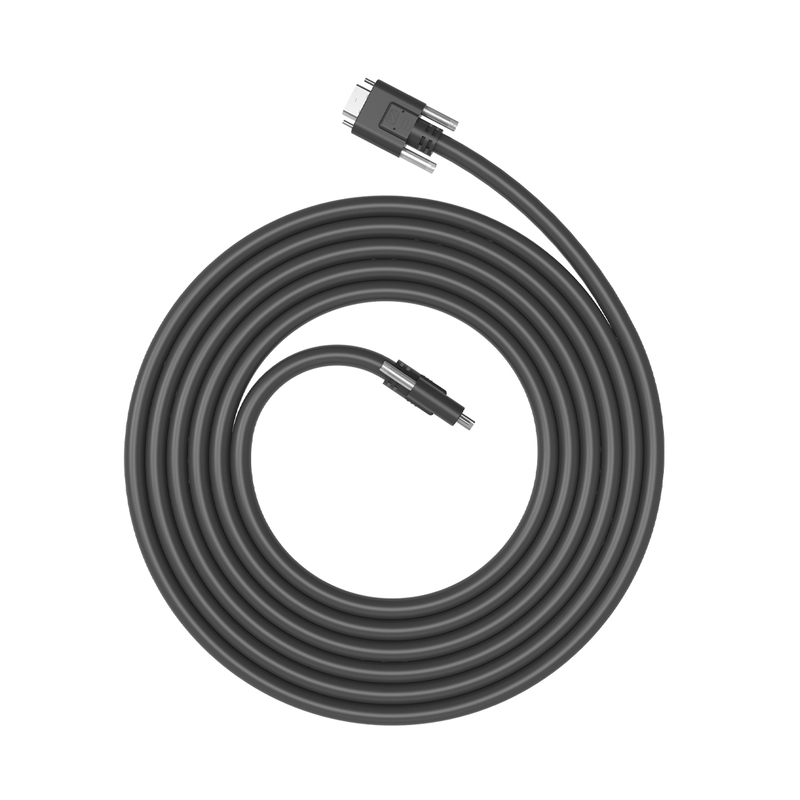

Camera Link

Camera link series, connect Camera link interface camera and frame grabber, traditional mature and reliable camera interface, can realize a cable solution (PoCL solution can supply power to the camera).
Availability:
Quantity:
Inquire Add to Basket

Camera Link
Camera Link
Camera Link
Camera Link

  • Camera Link

  • zhaolong

CABLE STRUCTURE/PERFORMANCE



 Fixed type High flexibility
Conductor specification 28AWG 28AWG
Shielding structure Aluminum foil and woven mesh shield Aluminum foil and woven mesh shield
Sheath material PVC
 PVC
Sheath color black black
Nominal outer diameter of cable 6.2mm
 7mm
Characteristic impedance 90士15Ω
 90士15Ω
temperature range
-40℃~80°c
 -5℃~70℃
-40℃~80℃(fixed)
 -5℃~70℃(move)



FEATURES

High flexibility, especially suitable for mobile installation; Good stability, both ends can be locked with screws;

Has excellent resistance to external electromagnetic interference; cable flame retardancy meets IEC60332-1; long service life



CAD DRAWING

Camera-link英

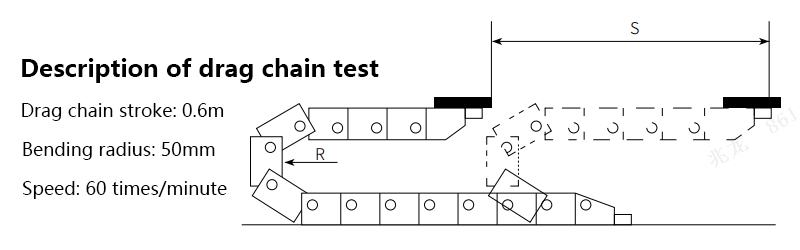

DRAG CHAIN TEST

未标题-3


EYE DIAGRAM BEFORE DRAG CHAIN


EYE DIAGRAM AFTER 5 MILLION TIMES OF DRAG CHAIN
