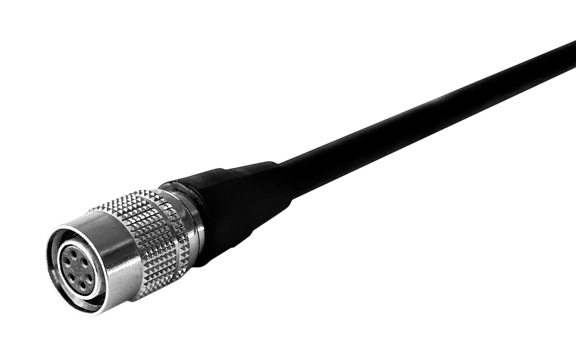

Camera power cord

Designed specifically for machine vision systems/industrial cameras, providing power supply and signal control for the camera.
Availability:
Quantity:
Inquire Add to Basket

  • Camera power cord

  • zhaolong

CABLE STRUCTURE/PERFORMANCE



          HR10A Fixed type      M8 Fixed type              M12 Fixed type
Conductor specification
         3x2x28AWG 6x24AWG
                  3x2X24AWG+6x24AWG
Shielding structure
 Aluminum foil and woven mesh shield
 Aluminum foil and woven mesh shield
  Aluminum foil and woven mesh shield
Sheath material
 PVC
 PUR
                               PVC
Sheath color black
 black
                              black
Characteristic impedance
 4.9mm
 5.5mm
                               8mm
temperature range
-40℃~80°c
-40℃~80℃
-40℃~80℃



FEATURES

A variety of connector types, HR10A series, M12, M8 are available

Excellent shielding design, to ensure strong resistance to external electromagnetic interference, suitable for a wide range of industrial occasions

The cable has very good oil resistance, cold resistance, flame retardancy, high waterproof and dustproof grade, M8, M12 meets IP65&IP67 grade, and meets RoHS 2.0

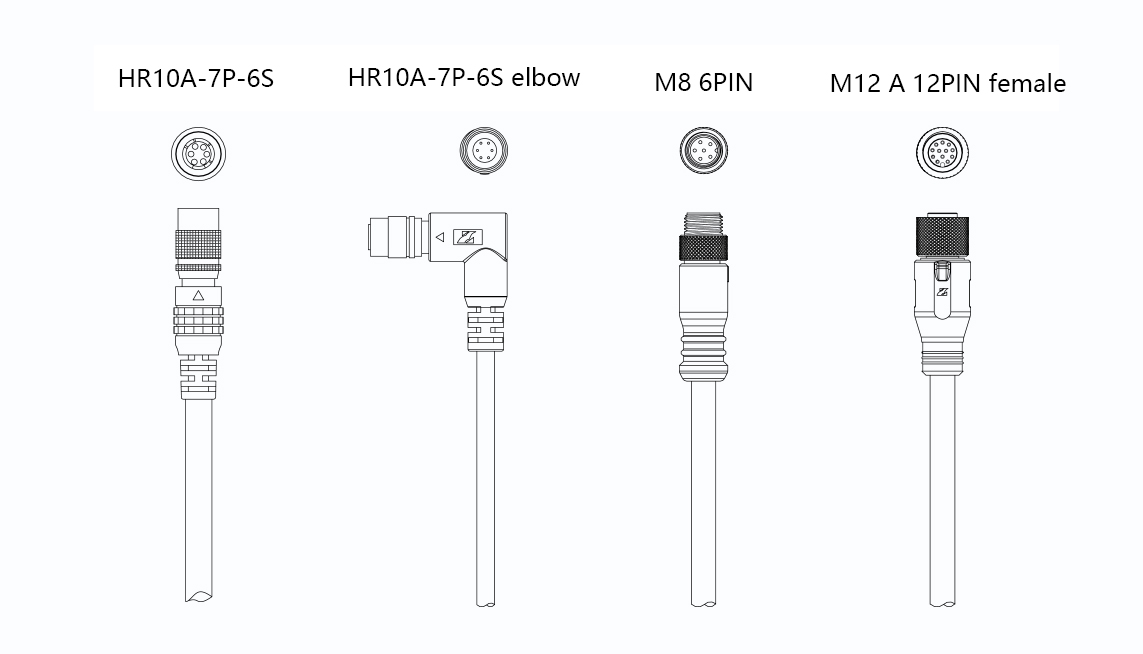

CAD DRAWING

相机电源线系列英
